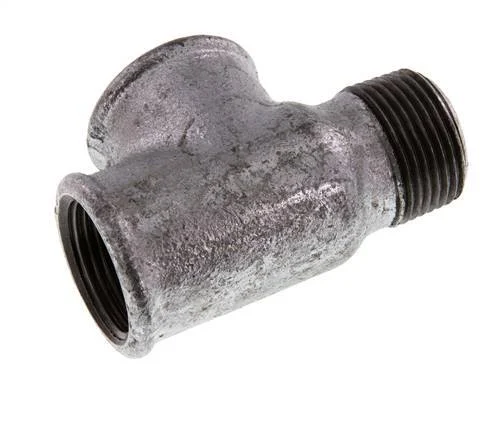

R 1” x Rp 1” M/F Zinc plated Cast iron Tee 25 Bar

This T-piece is designed with one male thread and two female threads in a T shape. Connection 1 has R 1 inch threads. Connection 2 has Rp 1 inch threads. Connection 3 has Rp 1 inch threads. It is made out of cast iron (malleable) and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 25 bar (363 psi).

FL3T-MF series

The FL3T-MF series has 3 connection ports. One male threaded and two female threaded in the shape of a T. Made out of brass, cast iron, or stainless steel, they have a max pressure of either 16 or 25 bar.

Specifications

Thread : 1 inch
Thread (smallest) : 1 inch
Connection type : Outer thread conical BSPT-R
Material : Cast iron
Max pressure at 20 °C (bar) : 25
Model : T-piece
Angle adjustable : No
Material connection 1 : Cast iron
Material connection 2 : Cast iron
Material connection 3 : Cast iron
Material quality connection 1 : Malleable cast iron
Material quality connection 2 : Malleable cast iron
Material quality connection 3 : Malleable cast iron
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
Surface protection connection 3 : Galvanic/electrolytic zinc plated
With drain : No
