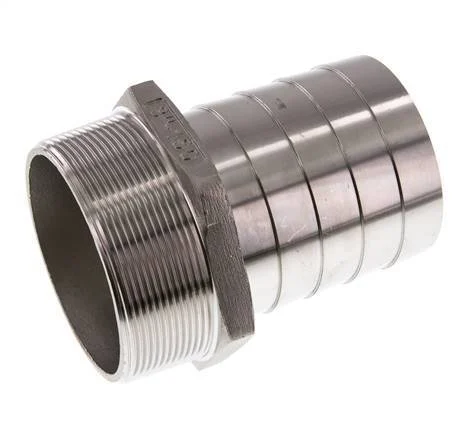

R 3” Male x 75mm Stainless steel Hose barb 16 Bar

This hose screw connection is designed with a nozzle and a male thread. Connection 1 has R 3 inch threads. Connection 2 is a hose pillar, designed for a hose with an inner diameter of 75 mm. It is a straight fitting. It is made out of stainless steel (1.4408). At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi). It has a 90 mm nut to be tightened with a wrench.

FL2S-MH series

The FL2S-MH series are hose barbs with male threads. They are made out of brass, stainless steel, steel or plastic. Available with G-, R-, and NPT thread. Suitable for a max pressure up to 40 bar.

Specifications

Thread : 3 inch
Hose pillar connection : 75 mm
Connection type : Outer thread conical BSPT-R
Material : Stainless steel
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 16
Quality of material : Stainless steel 316 (1.4408)
Model : 1-part
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 316 (1.4408)
Material quality connection 2 : Stainless steel 316 (1.4408)
Shape : Straight
With drain : No
Wrench width (mm) : 90
