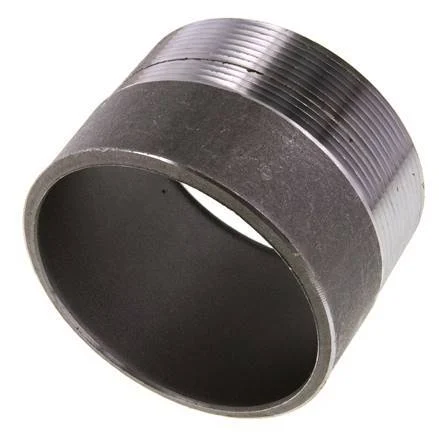

R 3” Male x 88.9mm Steel Pipe Nipple with Welding End 50 Bar DIN 2982 – 60mm

This welding nipple is designed with a male threaded connection point and an end for welding. Connection 1 has R 3 inch threads. Connection 2 is a welding point, with an outer diameter for welding of 88,9 mm and an inner diameter of 3 inch. It is a straight fitting. It is made out of steel (ST 37). It has a total length of 60 mm. At 20 °C (68 °F), it can handle a maximum pressure of 50 bar (725 psi). It is made in accordance with the EN 10241 (DIN 2982).

FL2S-M-P series

The FL2S-M-P series are straight fittings with male R or G threads and the second connection point is either male R or G threads or a welding connection. Made out of brass, steel, or stainless steel.

Specifications

Thread : 3 inch
Thread (smaller) : 3 inch
Welding connection (mm) : 88.9
Connection type : Outer thread conical BSPT-R
Material : Steel
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 50
Standard : EN 10241 (DIN 2982)
Fitting features : Welding
Quality of material : St 37 (1.0254)
Model : 1-part
Length (mm) : 60
Material connection 1 : Steel
Material connection 2 : Steel
Material quality connection 1 : St 37 (1.0254)
Material quality connection 2 : St 37 (1.0254)
Shape : Straight
With drain : No
