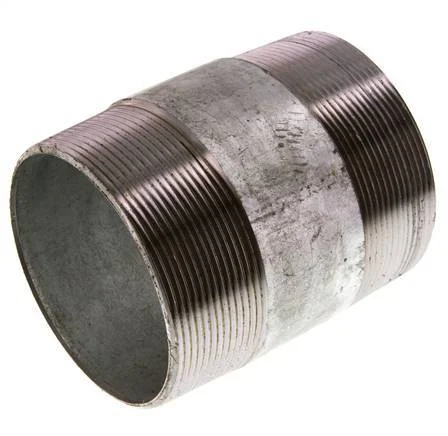

R 3” Zinc plated Steel Double Pipe Nipple 50 Bar DIN 2982 – 100mm

This double pipe nipple is designed with male to male threads. Connection 1 has R 3 inch threads. Connection 2 has R 3 inch threads. It is a straight fitting. It is made out of steel (ST 37) and is galvanic/electrolytic zinc plated for surface protection. It has a total length of 100 mm. At 20 °C (68 °F), it can handle a maximum pressure of 50 bar (725 psi). It is made in accordance with the EN 10241 (DIN 2982).

FL2S-M-P series

The FL2S-M-P series are straight fittings with male R or G threads and the second connection point is either male R or G threads or a welding connection. Made out of brass, steel, or stainless steel.

Specifications

Thread : 3 inch
Thread (smaller) : 3 inch
Connection type : Outer thread conical BSPT-R
Material : Steel
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 50
Standard : EN 10241 (DIN 2982)
Quality of material : St 37 (1.0254)
Model : 1-part
Length (mm) : 100
Material connection 1 : Steel
Material connection 2 : Steel
Material quality connection 1 : St 37 (1.0254)
Material quality connection 2 : St 37 (1.0254)
Shape : Straight
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
With drain : No
