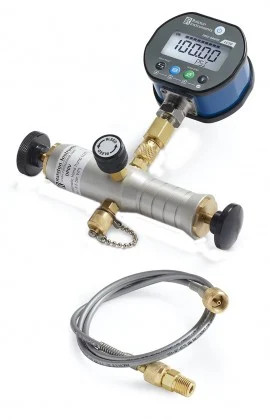

Produce a precise test pressure, this pneumatic pump kit is easy to operate and connected without any tools. This kit comes with a calibration certificate, hand pump, pressure reference, connectors, cable, and a hose.
Ralston DP0V-KIT6-VF Offers
Pump and pressure gauge combination includes everything needed to perform accurate, precise low pressure calibrations
Features
- Pressure Reference: LC20 pressure gauge, -15 to 30 psi / -100 to 200 kPa, 1/4″ Male NPT bottom connection
- Hand Pump: DP0V Pneumatic Hand Pump
- Reference Connection: 1/4″ female NPT x female Quick-test, no check-valve, brass
- Process Connection: 1/4″ male NPT x male Quick-test, no check-valve, brass
- Hose: Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long
Ralston DP0V-KIT6-VF Specifications
| Materials | Anodized Aluminum, Brass, Stainless Steel |
| Min Operating Temperature | 0 °F / -18 °C |
| Country of origin | USA |
| Pressure Reference | Digital pressure gauge, 100 PSIG Pressure |
| Seal Materials | Buna-N, Delrin, Teflon |
| Max Vacuum | 0 InHg / 0.0 kPa |
| Process Connection | 1/4″ Male NPT |
| Max Operating Temperature | 130 °F / 54 °C |
| Reference Connection | 1/4″ Female NPT |
| Max Pressure | 125 PSI / 8.6 bar / 860 kPa |
| Weight | 2.15 lbs / 975 grams |
| Dimensions | H: 8 in (20.32 cm) x W: 7.93 in (20.14 cm) x D: 2.9 in (7.37 cm) |
