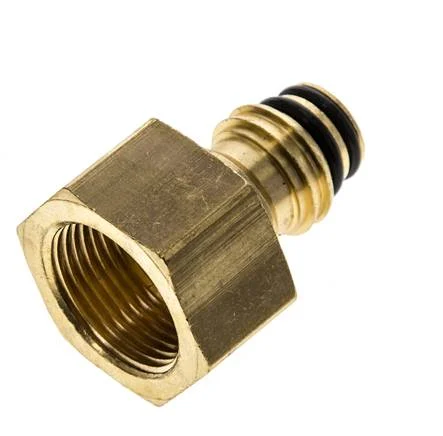

Threaded swivel fitting for the ABC building block system. Thread connection: M22x1,5 ISO 4039-1 port metric thread. Regular building block size. Hex: 28 mm. Weight: 60 g. Composite and brass construction with EPDM O-ring seals. Max. operating pressure: 12.5 bar. Temperature range: -40°C to +100°C.
Specifications
Thread : M22 x 1.5
Connection type : Outer thread metric
Shape : Straight
With drain : No
