Applications:
- Healthcare
- Government
- Manufacturing
- Enterprise

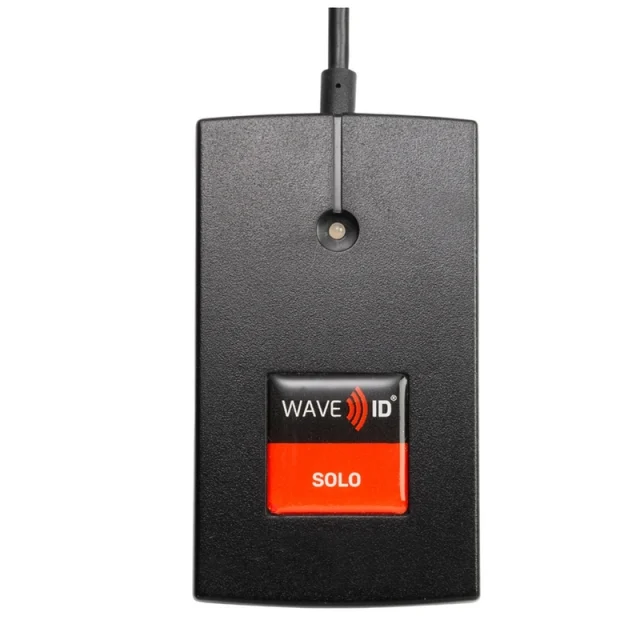

Wave ID Solo card reader is designed for organizations seeking to implement new ways to improve efficiency as well as leveraging their existing card system for applications beyond physical security. The Wave ID Solo reader for LEGIC 13.56 MHz contactless smart cards works with the proprietary LEGIC algorithm for data authentication and supports both LEGIC advant and LEGIC prime card technologies. It reads the UID and segments on the LEGIC cards. The Wave ID Solo reader is comes in keystroke version.
Developed to Meet and Exceed Stringent Secure Authentication Needs
The Wave ID Solo reader for LEGIC 13.56 MHz smart cards is used for identification, authentication, and access control applications. IT organizations select LEGIC card technology for its enhanced level of security, flexibility, Unique ID (UID) anticollision design and additional protection of identity. rf IDEAS is the preferred partner for solutions that combine readers, card technology and application software to eliminate manual entry of user names and passwords, streamline workflow and liminate errors for identification.
Plug-and-Play Functionality and Seamless Integration
Connecting directly into a USB port, the Wave ID Solo keystroke reader emulates a keyboard and outputs the card data to the cursor’s location on the screen. The Wave ID Solo reader is easily configured to increase security and control access. Through the configuration process, desired credential data output and access privileges for cardholders can be established.
With RF IDeas Extended features, additional flexibility is provided to manipulate card data and further increase security with encryption.
Backward compatible, the Wave ID Solo reader for LEGIC 13.56 MHz smart cards easily integrates into existing badge systems. It eliminates the need to add another badge or additional readers when increasing the number of applications that use badge systems for employee identification. The Wave ID Solo reader supports standards ISO 14443A and ISO 15693 for access control, secure printing, time and attendance, and cashlesspayment.
Developer-Friendly SDK
The Software Developer Kit or SDK reader integrates with your software or hardware product through the use of the rf IDEAS Universal software Developer’s Kit (SDK). In contrast to the keystroke readers, the SDK or non-keystroking reader passes the raw card data offering nearly unlimited possibilities for user identification and authentication.
For more information, please see Data Sheet
Technical Details
| Operating Frequency | 13.56 MHz |
| Interface | USB 2.0 |
| WAVE ID Solo SDK Support | Yes |
| Physical Characteristics | |
| Dimensions (inches) |
|
| Weight |
|
| Housing Color | Black |
| Cable Length | 6′ |
| Indicators |
|
| Form Factors | Desktop, surface mount |
| Power Supply | USB powered |
| Power Consumption | 95 mA typical, 150 mA maximum |
| Environmental | |
| Operating Temperature Range | –22° to 150°F (–30° to 65°C) |
| Operating Humidity Range | 5% to 95% relative humidity, non-condensing |
| Storage Temperature Range | –40° to 185°F (–40° to 85°C) |
| Other | |
| Certifications |
|
| Compatible Operating Systems | Windows XP®, 7®, 8.1®, 10® and Linux® |
| Card Types |
|
