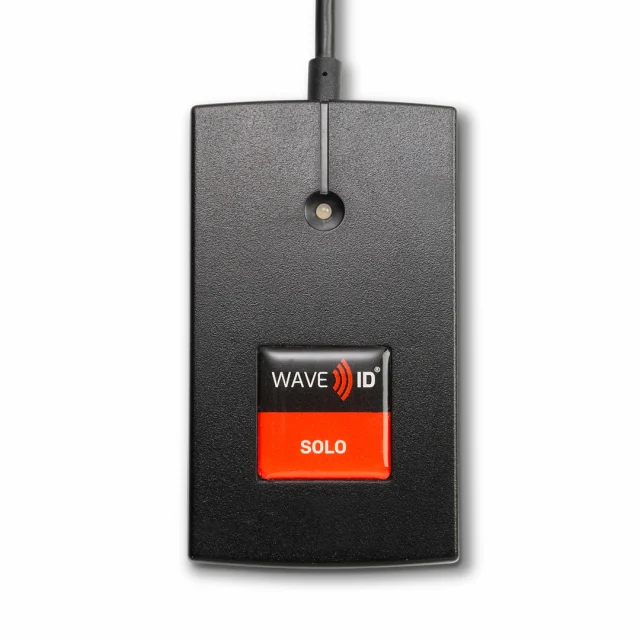

RF IDeas, RDR-6081AKE, Wave ID® Solo Keystroke HID Prox Black Ethernet Reader with Power Supply
Features:
- Manages employee identification and mustering
- Ideal for time and attendance, training meetings, visitor management
- Eliminates errors associated with individual ID, manual or keystroke entry
- Integrates into your software or hardware product through the use of the Universal Software Developer’s Kit (SDK)
Benefits:
- Reads nearly all proximity and contactless smart cards
- Optional LEGIC® technology to serve multiple applications
- Applicable for secure printing, healthcare applications, and process efficiencies
- Fully programmable and customizable user defined fields
- Protect and secure sensitive information
Wave ID Solo read-only readers were designed for customers seeking to leverage their existing card system for applications beyond building access. Providing exceptional protection while maximizing security on devices such as printers, healthcare technologies, process controllers, autonomous robots and more. The WAVE ID Solo delivers plug and play functionality with proximity and contactless smart cards and integrates with all leading operating systems, applications and embedded controllers. The 13.56 MHz model is compatible with most contactless smart cards and the 125 kHz proximity model provides error-free identification for over 300 million physical access cards in use worldwide.
Technical Details
| Operating Frequency | 125/132 kHz |
| Interface | USB, Ethernet, RS-232 or other |
| WAVE ID Plus SDK for Writing Apps to the Reader | Yes |
| Dimensions | Height 0.6″ (1.52cm) x Width 2.0″ (5.08cm) x Length 3 3/8″ (8.57cm) |
| Weight | 4.0 ounces (113.39g) |
| Housing Color | Black |
| Cable Length | 6′ standard; 6″ and 16″ lengths |
| Indicators | LED indicator; Adjustable beeper volume (off , low, medium, high) |
| Form Factors | Desktop, surface mount, non-housed |
| Minimum Voltage | 5V |
| Power Supply | USB powered; some RS-232 models require external power source |
| Power Consumption | 70 mA typical, 100 mA maximum |
| Operating Temperature Range | -22° to 150°F (-30° to 65°C) |
| Operating Humidity Range | 5% to 95% relative humidity, noncondensing |
| Storage Temperature Range | -40° to 185°F (-40° to 85°C) |
| Certifications | FCC-United States; CE Mark-Europe; RCM-Australia; IC-Industry Canada. Environmental: RoHS, REACH |
| Compatible Operating Systems | Windows XP®/7®/8.1,® 10® and Linux Ubuntu |
| Confi guration Utility | rf IDEAS Confi guration Utility on rf IDEAS support page |
