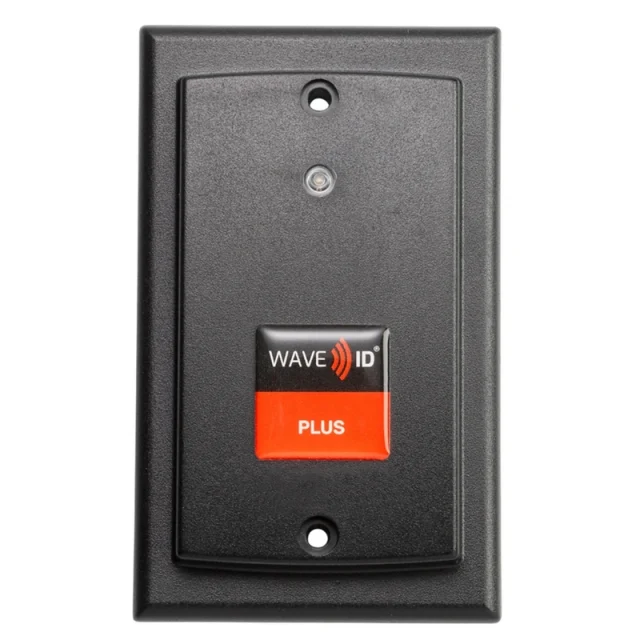

RF IDeas, RDR-800W1BK9, Wave ID Plus Keystroke V2 with iCLASS ID Surface Mount, Black, 5V, USB Power Tap, RS232 Reader
Features:
- Delivers card ID in formats that multiple applications recognize
- Standard four card configurations (two are pre-set; two are user-definable)
- Ideal for enrollment into third-party software or for single sign-on integrators
- User-adjustable beeper volume can be set to high, low or off as appropriate for the work environment
- 13.56 MHz auto-tuning ensures optimal power transfer to avoid interference
Benefits:
- Delivers nearly limitless possibilities for user identification and authentication
- Simultaneously reads proximity and contactless card technologies
- Customizable to work with any card solution for any size corporation
- Eliminates error associated with individual identification and manual entry
- Users can quickly configure reader output to meet their needs
Applications:
- Healthcare
- Government
- Manufacturing
- Enterprise
Wave ID® Plus IP67 Surface Mount reader line is certified with an IP67 compliant rating that ensures any machine equipped with the device will meet the requirements for complete protection against the ingress of dust, as well as water at a depth of one meter for up to thirty minutes.
Error-Free Identification
Just as the standard Wave ID Plus, the Wave ID Plus IP67 surface mount reader combines proximity and contactless technologies into one reader, allowing it to read both 125 kHz cards and 13.56 MHz smart cards. With the simple tap of an access card, the reader eliminates the need for manual entry and provides error-free identification and security throughout the workplace.
Simple Configuration
The plug-and-play reader comes with flash memory, allowing users to quickly configure the output to meet their needs. With its dual-frequency multi-technology, the Wave ID Plus IP67 is highly configurable and capable of simultaneously handling any two of the available technologies. As a card enroller or reader, it emulates a keyboard to keystroke the card’s data to the cursor’s location in an application. The reader can be configured to add keystrokes and commands before or after the card’s data.
Protect and Secure Sensitive Information
The Wave ID Plus IP67 Surface Mount reader can improve organization workflows and eliminate errors typically found with individual identification systems. It can be easily mounted on kiosks, walls and other indoor surfaces. As an integrated reader, the device incorporates all the functionality of the standard desktop readers and is ideal for specialized credential reading locations. It is specifically designed for applications such as kiosks, time & attendance, point of sale, hoteling, meeting attendance and others that require special mounting versatility.
For more information, please see Data Sheet
Technical Details
| Operating Frequency | 125 kHz and 13.56 MHz |
| Interface | Serial RS-232 |
| SDK available for writing apps to the reader | Yes |
| Dimensions (L x W x H) | 4.3″ x 2.5″ x 0.35″ (10.9cm x 6.35cm x 0.89cm) |
| Weight | 2.6 oz. (73.70g) |
| Housing Color | Black |
| Cable Length | 13 inches |
| Indicators | LED indicator; Adjustable beeper volume (off, low, medium, high) |
| Power Supply | USB Self-powered |
| Power Consumption | 70 mA typical, 150 mA maximum |
| Environment | |
| Operating Temperature Range | –22° to 150°F (–30° to 65°C) |
| Operating Humidity Range | 5% to 95% relative humidity, non-condensing |
| Storage Temperature Range | -40° to 185°F (-40° to 85°C) |
| Certications |
|
| Compatible Operating Systems | Windows XP®, 7®, 8®, 10® and Linux (Ubuntu, Red Hat), macOS and Android |
| Card Types | Supports nearly all card types worldwide |
