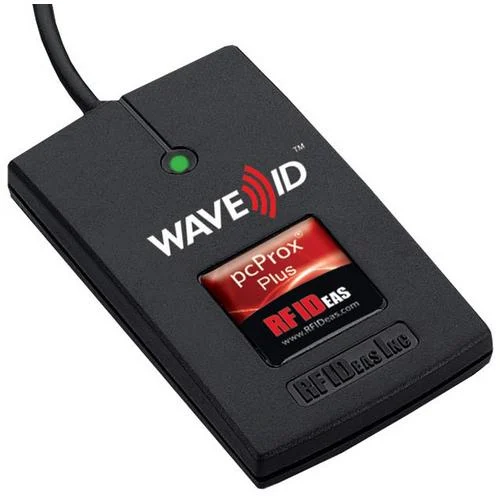

The RF IDeas pcProx Plus is a cutting-edge card reader that combines proximity and contactless technologies into one reader. It is a desktop reader that is capable of reading both 125 kHz proximity cards and 13.56 MHz contactless cards. This reader eliminates the need for manual entry and provides error-free identification and security throughout the workplace. The pcProx Plus allows users to use their building access card or any 125 kHz or 13.56 MHz tags/labels for other forms of identification.
The plug-n-play reader comes with flash memory, allowing users to quickly configure the output to meet their needs. With its dual-frequency multi-technology, the pcProx Plus is highly configurable and capable of simultaneously handling any two of the available technologies.
As a card and badge enroller or reader, it emulates a keyboard to keystroke the card’s data to the cursor’s location in an application. The reader can be configured to add keystrokes and commands before or after the card’s data.
The pcProx Plus reader can be used as a stand-alone unit, or can be seamlessly integrated with other software applications using the optional Software Developer’s Kit (SDK). As an integrated reader, it has the ability to work with a multitude of applications.
Features:
- Easy Interface and Protocol: USB models connect directly to a USB port and can be configured to send data as keystroking, non-keystroking or serial ASCII. RS-232 models connect to a serial port and send data as ASCII. Ethernet models connect through an RJ45 connection and are sent data as either ASCII or E/IP.
- Compatibility: Compatible with Windows CE/2000/XP/ Vista/7, Macintosh, Solaris, ThinManagerthin clients, and Linux. (Free configuration software required on Windows operating system.)
- Improves Accuracy and Productivity: Eliminates errors associated with individual identification.
- Versatile Mounting Options: Featuring an articulated cable, the standard housing reader can easily be mounted on kiosks, monitors, time clocks, and more.
Technical Details
| Operating Frequency | Both 125 kHz & 13.56 MHz (Dual) |
| Typical maximum read range | 125 kHz:
13.56 MHz:
|
| Current Consumption | USB Units – Typical 70 mA, max 100 mA; Serial Units – Typical 75 mA, max 110 mA |
| Dimensions | 3-3/8″ x 2” x 0.6″ (8.57cm x 5.08cm x 1.52cm) |
| Weight | 4.0oz (113.39g) |
| Indicators | Tri-state LED, dual tone beeper |
| Power Supply | USB Self-powered; PoE; Serial RS-232: several power options exist |
| Interface | USB, Serial RS-232, Ethernet |
| Operating Temperature Range | -22° to 150°F (-30° to 65°C) |
| Operating Humidity Range | 5% to 95% relative humidity, non-condensing |
| Storage Temperature Range | -40° to 185°F (-40° to 85°C) |
