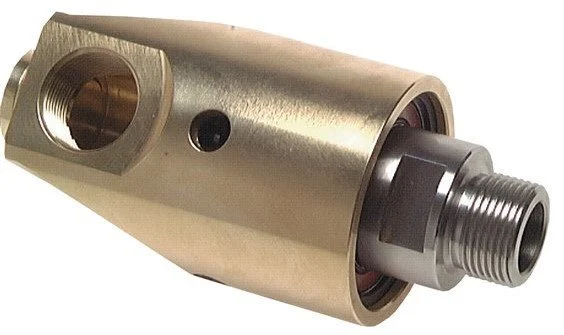

Rotary Joint G1 1/2” Female x G1 1/2” Male Left Hand Stainless Steel 50bar (702.5psi)

This rotary joint is typically used to transfer water from a supply line to continuously rotating equipment or from equipment to the return line. The seal material is tungsten carbid. The maximum operating pressure is 50 bar (702.5 psi).

Note: The left-handed thread is used for drums that rotate clockwise. The right-handed thread is fed into the counter-clockwise rotating drum.

Specifications

Thread : 1 1/2 inch
Connection type : Inner thread cylindrical BSPP-G,External thread BSPP-G left hand
Material : Stainless steel
Seal material : Tungsten carbid
Max pressure at 20 °C (bar) : 50
Min temperature (°C) : 0
Max temperature (°C) : 95
Max. number of revolutions (Rpm) : 2500
Length (mm) : 208
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Shape : Straight
With drain : No
