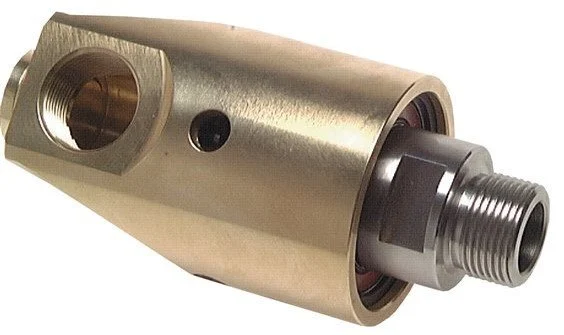

Rotary Joint G2” Female x G2” Male Left Hand Brass 40bar (562.0psi) Abrasive Media

This rotary joint is typically used to transfer water from a supply line to continuously rotating equipment or from equipment to the return line. Brass fittings are suitable for neutral and non-corrosive media. The seal material is tungsten carbid. The maximum operating pressure is 40 bar (562.0 psi). This fitting is suitable for abrasive media or unclean water.

Note: The left-handed thread is used for drums that rotate clockwise. The right-handed thread is fed into the counter-clockwise rotating drum.

Specifications

Thread : 2 inch
Connection type : Inner thread cylindrical BSPP-G,External thread BSPP-G left hand
Material : Brass
Seal material : Tungsten carbid
Max pressure at 20 °C (bar) : 40
Min temperature (°C) : 0
Max temperature (°C) : 95
Fitting features : Abrasive media
Max. number of revolutions (Rpm) : 750
Length (mm) : 223
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
With drain : No
