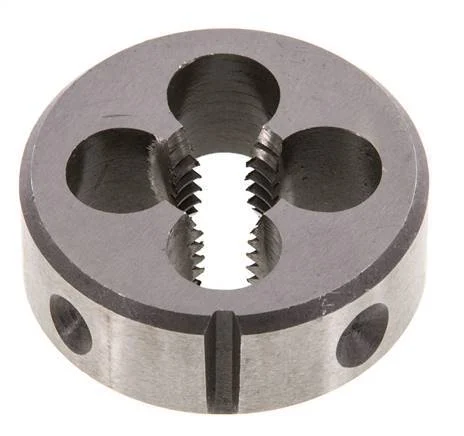

Round Die DIN EN 22568 Standard Thread M 12×1.75

Original price was: $18.71.Current price is: $5.61.

SKU: T237M Category: Tools Tag: Tameson

Description
Reviews (0)

This is a shape B round die for standard M12 external metric thread cutting (male threads). It is 14 mm thick and cuts a 1.75 mm thread pitch.

Pros:

Suitable for steel and cast steel alloys and non-alloys (<800 N/mm2 tensile strength)
Also suitable for cast and sintered iron, graphite, brass and bronze
ISO 6g tolerance

Specifications

Thread size (metric) : 12
Thread type : Metric
Pitch thread (mm) : 1.75
Outer-diameter (mm) : 38
Height (mm) : 14
Cutting material : HSS
Cutting direction : Right
Model : Thread cutting die
