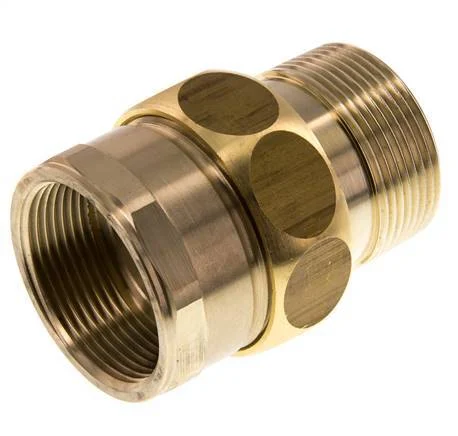

Rp 1 1/2” x R 1 1/2” F/M Brass Double Nipple 3-pieces with Flat sealing 16 Bar

This screw connection is designed with Rp female threads and R male threads. Connection 1 has Rp 1 1/2 inch threads. Connection 2 has R 1 1/2 inch threads. It is a straight fitting. It is made out of brass. It has a centellen seal. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi). They have a 3-part design.

FL2S-M-T series

The FL2S-M-T series are straight fittings with Rp female threads and R male threads and a flat seal. They are a 3-part design made out of brass or stainless steel.

Specifications

Thread : 1 1/2 inch
Thread (smaller) : 1 1/2 inch
Connection type : Inner thread cylindrical BSPT-Rp,Outer thread conical BSPT-R
Material : Brass
Seal material : Centellen
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 16
Type of sealing : Flat sealing
Model : 3-part
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
With drain : No
