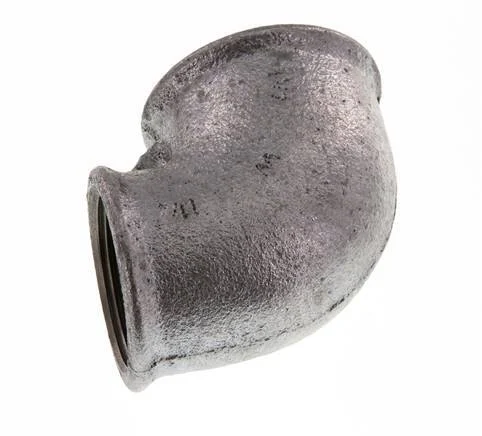

Rp 1 1/2” x Rp 1 1/4” Zinc plated Cast iron 90 deg Elbow Fitting 25 Bar

This elbow is designed with female threads at an angle. Connection 1 has Rp 1 1/2 inch threads. Connection 2 has Rp 1 1/4 inch threads. It is an elbow fitting. It is made out of cast iron (malleable) and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 25 bar (363 psi). The input and the output are at a 90° angle.

FL2E-F series

The FL2E-F series are elbow fittings with female threads. They have 2 ports at either a 45 or 90 degree bend. Made out of brass, steel, cast iron, or stainless steel that has been forged or casted. NPT, G, Rp, or metric threads.

Specifications

Thread : 1 1/2 inch
Thread (smaller) : 1 1/4 inch
Connection type : Inner thread cylindrical BSPT-Rp
Material : Cast iron
Max pressure at 20 °C (bar) : 25
Fitting features : Reducing
Quality of material : Malleable cast iron
Model : 1-part
Bend angle (°) : 90
Material connection 1 : Cast iron
Material connection 2 : Cast iron
Material quality connection 1 : Malleable cast iron
Material quality connection 2 : Malleable cast iron
Shape : Elbow
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
