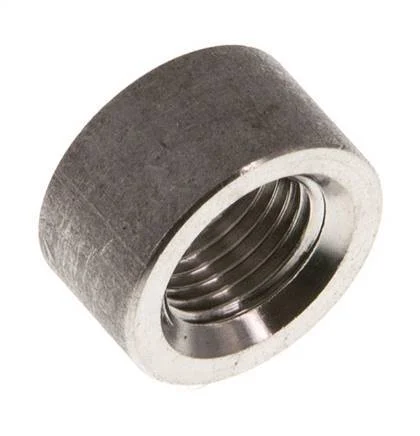

Rp 1/8” x 14mm Stainless steel Welding Socket 40 Bar DIN 2986 – 8mm [2 Pieces]

This welding sleeve is designed with welding male threads together. Connection 1 has Rp 1/8 inch threads. Connection 2 has Rp 1/8 inch threads. It is a straight fitting. It is made out of stainless steel (1.4571). It has a total length of 8 mm. At 20 °C (68 °F), it can handle a maximum pressure of 40 bar (580 psi). It is made in accordance with the EN 10241 (DIN 2986).

FL2S-F series

The FL2S-F series are straight sleeves designed either as reduces or weldable for female threads. They are made out of brass, cast iron, steel, sainless steel, or aluminum.

Specifications

Thread : 1/8 inch
Thread (smaller) : 1/8 inch
Connection type : Inner thread cylindrical BSPT-Rp
Material : Stainless steel
Max pressure at 20 °C (bar) : 40
Standard : EN 10241 (DIN 2986)
Fitting features : Welding
Quality of material : Stainless steel (1.4571)
Model : 1-part
Length (mm) : 8
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Shape : Straight
