Rp 2” x 66.2mm Steel Welding Socket 40 Bar DIN 2986 – 26mm [2 Pieces]

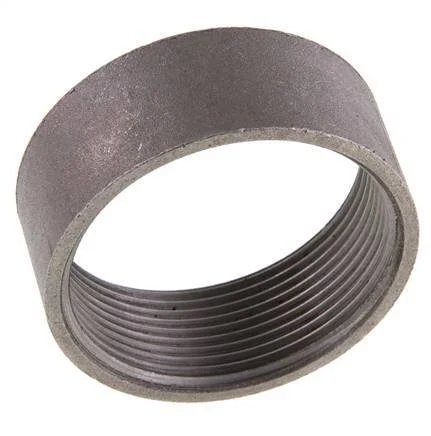

This welding sleeve is designed with welding male threads together. Connection 1 has Rp 2 inch threads. Connection 2 has Rp 2 inch threads. It is a straight fitting. It is made out of steel (ST 37.2). It has a total length of 26 mm. At 20 °C (68 °F), it can handle a maximum pressure of 40 bar (580 psi). It is made in accordance with the EN 10241 (DIN 2986).

FL2S-F series

The FL2S-F series are straight sleeves designed either as reduces or weldable for female threads. They are made out of brass, cast iron, steel, sainless steel, or aluminum.

Specifications

Thread : 2 inch
Thread (smaller) : 2 inch
Connection type : Inner thread cylindrical BSPT-Rp
Material : Steel
Max pressure at 20 °C (bar) : 40
Standard : EN 10241 (DIN 2986)
Fitting features : Welding
Quality of material : St 37.2 (1.0037)
Model : 1-part
Length (mm) : 26
Material connection 1 : Steel
Material connection 2 : Steel
Material quality connection 1 : St 37.2 (1.0037)
Material quality connection 2 : St 37.2 (1.0037)
Shape : Straight
