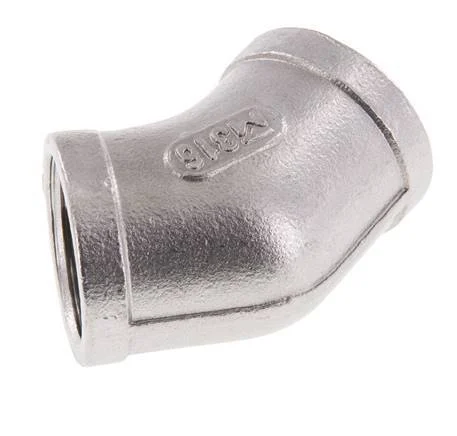

Rp 3/4” Stainless steel 45 deg Elbow Fitting 16 Bar

This elbow is designed with female threads at an angle. Connection 1 has Rp 3/4 inch threads. Connection 2 has Rp 3/4 inch threads. It is an elbow fitting. It is made out of stainless steel (1.4408). At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi). The input and the output are at a 45° angle.

FL2E-F series

The FL2E-F series are elbow fittings with female threads. They have 2 ports at either a 45 or 90 degree bend. Made out of brass, steel, cast iron, or stainless steel that has been forged or casted. NPT, G, Rp, or metric threads.

Specifications

Thread : 3/4 inch
Thread (smaller) : 3/4 inch
Connection type : Inner thread cylindrical BSPT-Rp
Material : Stainless steel
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 16
Quality of material : Stainless steel 316 (1.4408)
Model : 1-part
Bend angle (°) : 45
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 316 (1.4408)
Material quality connection 2 : Stainless steel 316 (1.4408)
Shape : Elbow
With drain : No
