Rp 3/4” Stainless steel End cap 16 Bar [2 Pieces]

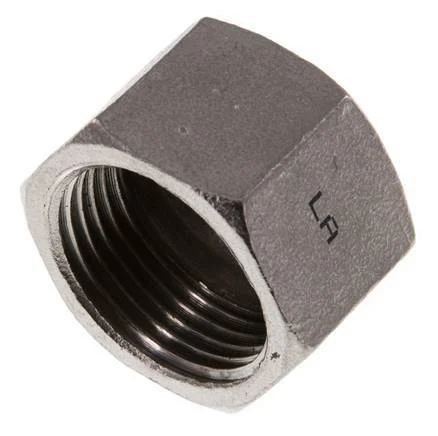

This end cap is designed with a female threaded connection. Connection 1 has Rp 3/4 inch threads. It is an end cap, so it has no output port. It is made out of stainless steel (1.4408). At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi).

FL1-F series

The FL1-F series consists of fittings with 1 female threaded connection port, so they are end caps. G, Rp, and NPT threads with a size range of 1/8 inch to 3 inches. Made out of brass, steel, stainless steel, or cast iron. They are designed to stop the media flow.

Specifications

Thread : 3/4 inch
Connection type : Inner thread cylindrical BSPT-Rp
Fitting features : Capped
Material : Stainless steel
Max pressure at 20 °C (bar) : 16
Material connection 1 : Stainless steel
Material quality connection 1 : Stainless steel 316 (1.4408)
With drain : No
