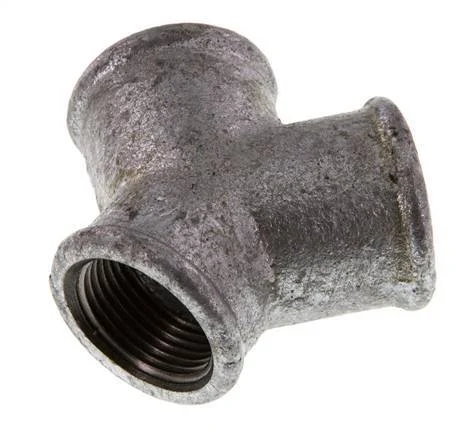

Rp 3/4” Zinc plated Cast iron Y-Piece 25 Bar

This Y-piece is designed with three female threaded ports in a Y shape. Connection 1 has Rp 3/4 inch threads. Connection 2 has Rp 3/4 inch threads. Connection 3 has Rp 3/4 inch threads. It is made out of cast iron (malleable) and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 25 bar (363 psi).

FL3Y-F series

The FL3Y-F series has 3 connection ports in the shape of a Y. They are all female threaded with G or Rp threads. Made out of brass, cast iron, and stainless steel. Max pressure of either 16 or 25 bar.

Specifications

Thread : 3/4 inch
Thread (smallest) : 3/4 inch
Connection type : Inner thread cylindrical BSPT-Rp
Material : Cast iron
Max pressure at 20 °C (bar) : 25
Model : Y-piece
Angle adjustable : No
Material connection 1 : Cast iron
Material connection 2 : Cast iron
Material connection 3 : Cast iron
Material quality connection 1 : Malleable cast iron
Material quality connection 2 : Malleable cast iron
Material quality connection 3 : Malleable cast iron
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
Surface protection connection 3 : Galvanic/electrolytic zinc plated
With drain : No
