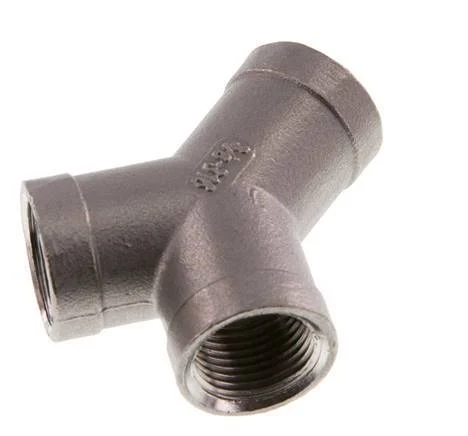

Rp 3/8” Stainless steel Y-Piece 16 Bar

This Y-piece is designed with three female threaded ports in a Y shape. Connection 1 has Rp 3/8 inch threads. Connection 2 has Rp 3/8 inch threads. Connection 3 has Rp 3/8 inch threads. It is made out of stainless steel (1.4408). At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi).

FL3Y-F series

The FL3Y-F series has 3 connection ports in the shape of a Y. They are all female threaded with G or Rp threads. Made out of brass, cast iron, and stainless steel. Max pressure of either 16 or 25 bar.

Specifications

Thread : 3/8 inch
Thread (smallest) : 3/8 inch
Connection type : Inner thread cylindrical BSPT-Rp
Material : Stainless steel
Max pressure at 20 °C (bar) : 16
Model : Y-piece
Angle adjustable : No
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material connection 3 : Stainless steel
Material quality connection 1 : Stainless steel 316 (1.4408)
Material quality connection 2 : Stainless steel 316 (1.4408)
Material quality connection 3 : Stainless steel 316 (1.4408)
With drain : No
