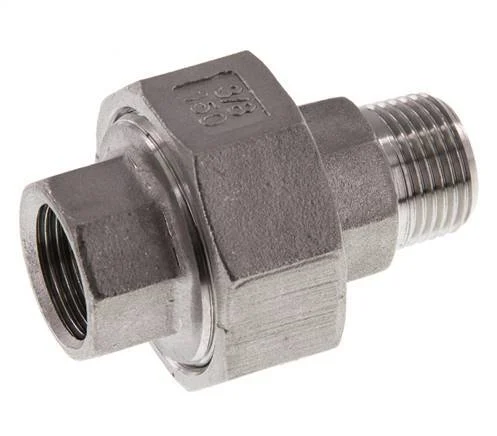

Rp 3/8” x R 3/8” F/M Stainless steel Double Nipple 3-pieces with Flat sealing 16 Bar

This screw connection is designed with Rp female threads and R male threads. Connection 1 has Rp 3/8 inch threads. Connection 2 has R 3/8 inch threads. It is a straight fitting. It is made out of stainless steel (1.4408). It has a polytetrafluoroethylene (PTFE) seal. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi). They have a 3-part design.

FL2S-M-T series

The FL2S-M-T series are straight fittings with Rp female threads and R male threads and a flat seal. They are a 3-part design made out of brass or stainless steel.

Specifications

Thread : 3/8 inch
Thread (smaller) : 3/8 inch
Connection type : Inner thread cylindrical BSPT-Rp,Outer thread conical BSPT-R
Material : Stainless steel
Seal material : Teflon (PTFE)
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 16
Type of sealing : Flat sealing
Quality of material : Stainless steel 316 (1.4408)
Model : 3-part
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 316 (1.4408)
Material quality connection 2 : Stainless steel 316 (1.4408)
Shape : Straight
With drain : No
