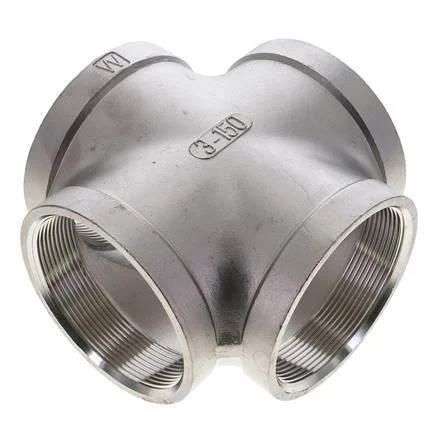

Rp 3” Female Stainless steel Cross 16 Bar

This crosspiece is designed with four female threaded connection ports. Connection 1 has Rp 3 inch threads. Connection 2 has Rp 3 inch threads. Connection 3 has Rp 3 inch threads. Connection 4 has Rp 3 inch threads. It is made out of stainless steel (1.4408). At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi).

FL4X-F series

The FL4X-F series has 4 connection ports in a cross shape. They are all female G or Rp threads. Max pressure of 16 or 25 bar and made out of brass, cast iron, or stainless steel.

Specifications

Thread : 3 inch
Connection type : Inner thread cylindrical BSPT-Rp
Material : Stainless steel
Max pressure at 20 °C (bar) : 16
Material quality : Stainless steel 316 (1.4408)
Model : Cross piece 90°
Nominal inner diameter connection 4 : 3 inch (80)
