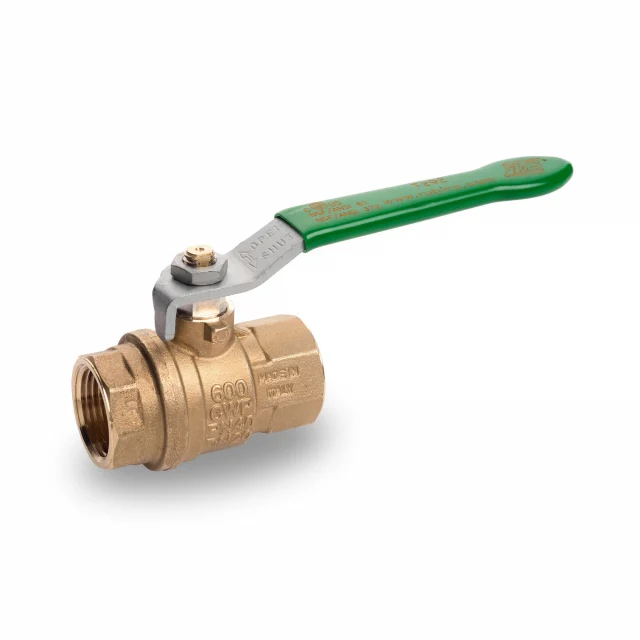

RuB T292H41 T292 1-1/2″ Puri-T FIPxFIP NPT Green Steel Handle

RuB, T292H41, T292 1-1/2″ Puri-T Lead Free FIPxFIP NPT with Green Steel Handle

Features:

• Quality
  • Certified by CSA International to comply with U.S. s3874, California AB1953, and similar laws of other states for the safe handling of drinking water
  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Handle stops on body to avoid stress at stem
• Body
  • Hot forged sand blasted, unplated lead free brass body and cap sealed with Loctite® or equivalent thread sealant
  • Chrome plated lead free brass ball for longer life
• Stem
  • Pure PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance
  • Blowout-proof unplated lead free brass stem
• Sealing
  • Glass filled pure PTFE self-lubricating seats with flexible-lip design
• Threads
  • NPT taper ANSI B.1.20.1 female by female threads
• Flow
  • Full port to DIN 3357 for maximum flow
• Handle
  • Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both Thermal and electrical protection
  • WARNING: do not exceed reasonable temperature and/or electrical load
• Working pressure & temperature
  • 600 PSI non-shock cold working pressure
  • For general use: -40°F / +350°F (-40°C to +170°C)
  • NSF 61 limits (CSA approval): tested for use in continuous exposure to water of ambient temperature
  • WARNING: freezing of the fluid in the installation may severely damage the valve
• Approved by or in compliance with
  • GOST-R (Russia)
  • Certified by CSA International for Drinking Water to NSF/ANSI 61 – NSF/ANSI 372 (United States)
  • RoHS Compliant (EU)

NOTE: approvals apply to specific configurations/sizes only.

Valve Parts:

1. Unplated NPT body
2. Seat
3. Chrome plated ball
4. Unplated NPT end-cap
5. Unplated stem packing gland design
6. Nickel plated gland nut
7. Geomet® nut
8. Packing gland seal
9. Thrust washer
10. Green PVC coated Geomet® steel handle

Pressure-temperature chart

Pressure drop chart

Technical Details
