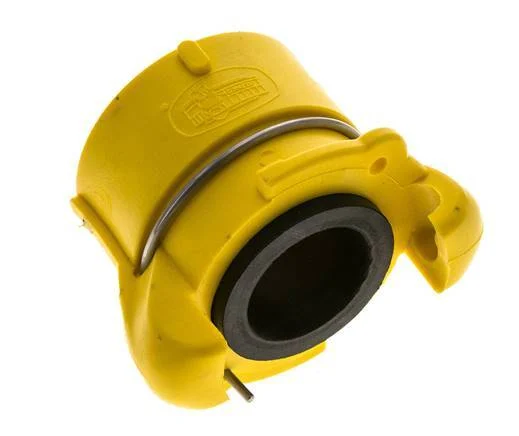

Sandblast Coupling 1 1/4” Female Threads Nylon Coupling Length 63 mm

This is a sandblast coupling with a 1 1/4” BSP female thread connection. It is made of nylon with an NBR seal. The maximum operating pressure is 12 bar (174 psi). The coupling is suitable for temperatures between -15 to 50 °C (5 to 122 °F). The coupling length is 63 mm.

Sandblasting couplings are designed to connect hoses with sandblasting nozzles. The claw distance is 58 mm.

Pros:

• The hose is directly positioned on the seal. The sandblasting abrasive cannot be compressed behind the seal
• The polyamide version comes standard with an automatic locking clip
• Ideal for use in extremely harsh environments

Specifications

Connection size : 1 1/4 inch
Material : Polyamide (PA)
Seal material : NBR (nitrile rubber)
Operating pressure (bar) : 12
Thread type : Gas-thread
Connection type : Inner thread cylindrical BSPP-G
Max temperature (°C) : 50
Min temperature (°C) : -15
Coupling type : Claw coupling
