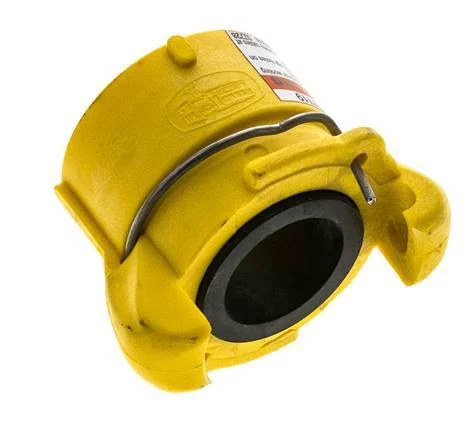

Sandblast Coupling 50 mm Female Threads Nylon Coupling Length 63 mm

This is a sandblast coupling with 50 mm coarse female threads. It is made of nylon with an NBR seal. The maximum operating pressure is 12 bar (174 psi). The coupling is suitable for temperatures between -15 to 50 °C (5 to 122 °F). The coupling length is 63 mm.

Sandblasting couplings are designed to connect hoses with sandblasting nozzles. The claw distance is 58 mm.

Pros:

• The hose is directly positioned on the seal. The sandblasting abrasive cannot be compressed behind the seal
• The polyamide version comes standard with an automatic locking clip
• Ideal for use in extremely harsh environments

Specifications

Connection size : 50 mm
Material : Polyamide (PA)
Seal material : NBR (nitrile rubber)
Operating pressure (bar) : 12
Thread type : Coarse thread
Connection type : Coarse thread
Max temperature (°C) : 50
Min temperature (°C) : -15
Coupling type : Claw coupling
