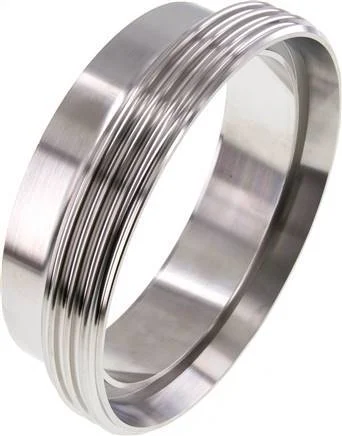

Sanitary (Dairy) Fitting 160 X 1/4” x 139.7 mm Stainless Steel EPDM

This stainless steel sanitary fitting is made in accordance with ISO tube standards. It has a round threads on one side and a tube on the other side. Sanitary fittings connect using a union nut. The seal material is EPDM.

Specifications

Thread : 160 x 1/4 inch
Tube outer diameter : 139.7 mm
Connection type : External thread Rd,Tube connection
Material : Stainless steel
Seal material : EPDM
Nominal diameter : DN 125
Approval : FDA 21 CFR 177.2600
Quality of material : Stainless steel (1.4301)
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4301)
Material quality connection 2 : Stainless steel (1.4301)
Shape : Straight
With drain : No
