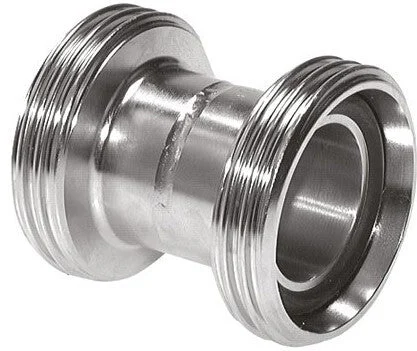

Sanitary (Dairy) Fitting 34 X 1/8” DN 15 Stainless Steel EPDM

This stainless steel sanitary double nipple has a round thread on both sides. It has an EPDM seal with food approval FDA 21 CFR 177.2600 and EG VO 1935/2004. Sanitary fittings connect using a union nut. The seal material is EPDM.

Specifications

Thread : 34 x 1/8 inch
Connection type : External thread Rd
Material : Stainless steel
Seal material : EPDM
Nominal diameter : DN 15
Approval : FDA 21 CFR 177.2600
Quality of material : Stainless steel (1.4301)
Length (mm) : 42
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4301)
Material quality connection 2 : Stainless steel (1.4301)
Shape : Straight
With drain : No
