Key Features
Stops on ContactThe SawStop safety system monitors the blade and drops it below the table in less than 5 milliseconds after skin contact. That is the feature that sets this cabinet saw apart when safety matters as much as cut quality. 30 Inch Premium FenceThe 30 inch Premium Fence System is built for smooth travel, precise measurement, and solid lockup without deflection. That means cleaner repeatable rips and less time second-guessing your setup. Cabinet Saw BuildCast iron work surfaces, chrome-handled cast iron wheels, and a heavy cabinet base give the SawStop PCS175-PFA30 Professional Cabinet Saw the stability serious woodworking calls for. The benefit is smoother cuts, better control, and a saw that feels planted.
Overview

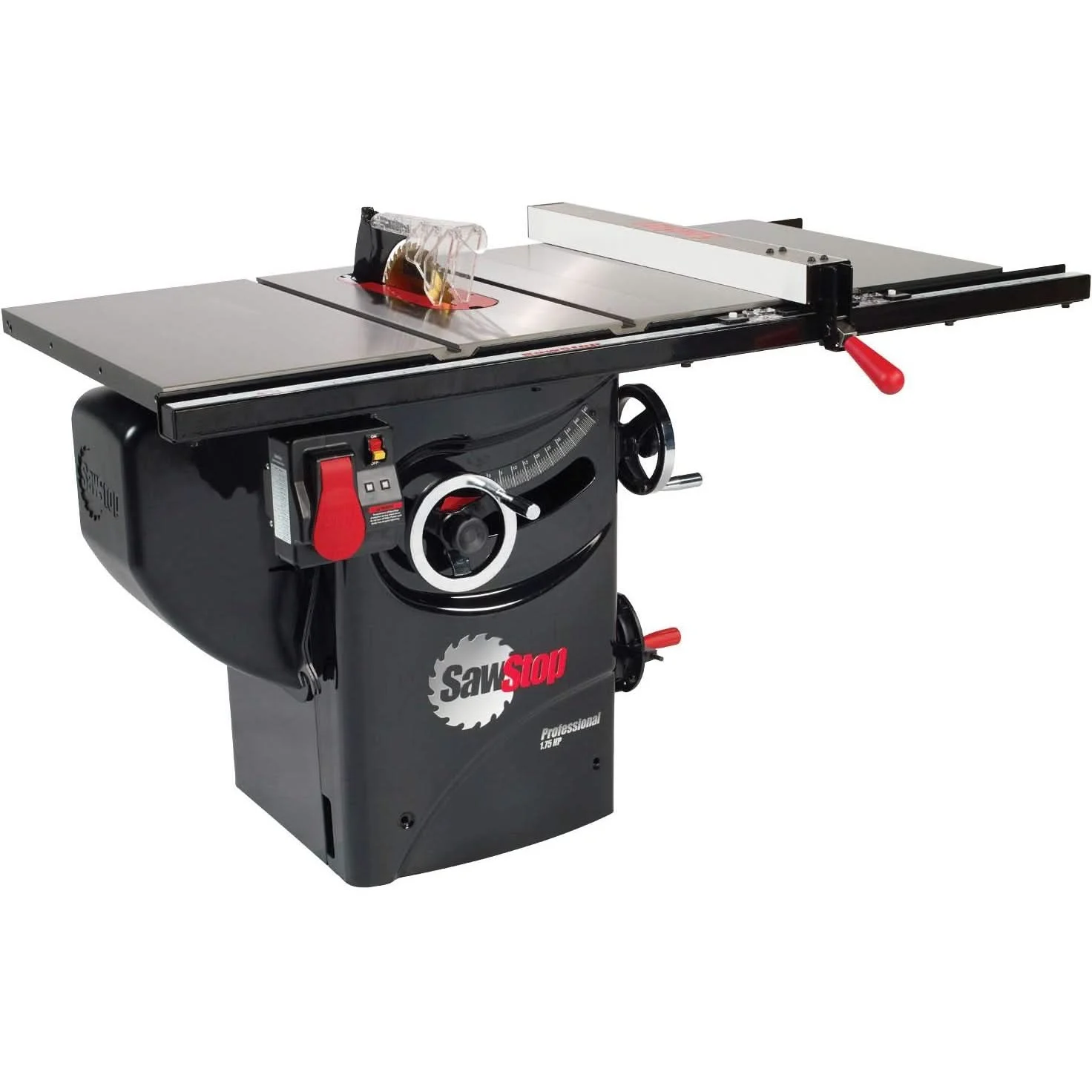

The SawStop PCS175-PFA30 Professional Cabinet Saw is a 10 inch cabinet table saw built for precision woodworking, repeatable ripping, and safer shop use. This is a cabinet saw designed for fine woodworking, furniture building, cabinetry, and production rip cuts. Model Number: PCS175-PFA30. In this configuration, you get the 1.75 horsepower saw body paired with the 30 inch Premium Fence System, giving you a full stationary table saw setup for shops that want serious accuracy without stepping up to a larger industrial machine.
For the buyer deciding between contractor-grade and cabinet-grade equipment, this model matters because it brings the heavy, stable feel of a true cabinet saw together with SawStop’s blade-brake safety technology. The 10 inch blade, 5/8 inch arbor, and 30 inch rip capacity to the right of the blade make it a practical fit for everyday hardwood and sheet-good work. Max depth of cut is 3-1/8 inches at 0 degrees and 2-1/4 inches at 45 degrees, so it has the capacity for typical woodworking stock while still keeping the footprint manageable for a dedicated shop.
The fence is a big part of why this specific version is worth looking at. The Premium Fence System is built for smooth operation, precise measurement, and firm lockdown without deflection. On the job that means fewer adjustments, less drift during long rips, and more confidence when you are batching parts. SawStop also backs up the accuracy story with tight published tolerances, including 0.001 inch maximum allowable arbor runout, 0.010 inch maximum table flatness gap measured diagonally, and 0.010 inch maximum blade alignment displacement with the miter slot.
Build quality is exactly what you would expect from a cabinet saw aimed at serious users. The cast iron table measures 20 inches wide by 27 inches deep, and with the extension wings installed the main work surface reaches 44 inches wide by 27 inches deep. The hand wheels are 7 inch cast iron with chrome handles, which sounds like a small detail until you spend a full day making height and tilt adjustments. SawStop also uses two V-ribbed belts for power transfer, helping the saw run true with minimal vibration.
Dust handling and day-to-day shop practicality are well thought out. The saw uses a 4 inch dust collection port below the table, and SawStop lists optional above-table dust collection solutions depending on setup. On 1.75 horsepower models, a micro blade guard is standard. If you want to run an 8 inch dado stack, this saw supports it up to 29/32 inch wide, but it requires the proper dado brake cartridge and insert. That is the kind of detail that matters before you place the order, especially if dado work is part of your normal workflow.
Power specs are straightforward and useful. This version runs a 1.75 horsepower motor on 120 volts and draws 14 amps in standard configuration. SawStop also notes that the motor can be user-configured to 220 volts with an optional kit available for purchase. That gives smaller shops some flexibility now, while still leaving room to change the electrical setup later if the shop evolves.
Who is this for? Woodworkers who want cabinet saw accuracy, a dependable fence, and the added confidence of SawStop safety. It makes sense for custom furniture shops, serious hobbyists, trim and built-in work done in a dedicated shop, school or training environments, and pros who are ready to buy one table saw and keep it for the long haul. If you mostly break down material on site, this is more saw than you need. If you care about clean rip cuts, smooth adjustments, and a stable cast iron platform, this is exactly the category you should be shopping.
Built Around Safer Table Saw Operation
This is the reason most buyers start with SawStop and stay with SawStop. The system carries a small electrical signal through the blade, detects contact with skin, and activates the brake fast enough to stop the blade in less than 5 milliseconds.
- Blade brake activation drops the blade below the table after contact
- Reset process involves replacing the blade and brake cartridge
- Designed for woodworkers who want safer ripping, crosscutting, and everyday table saw work
Fence Accuracy You Can Trust on Repeat Cuts
The 30 inch Premium Fence System is the working end of this setup. Smooth travel and a solid lock make a real difference when you are ripping face-frame parts, cabinet sides, shelving, or any job where one bad setting ruins a batch.
- 30 inch max rip capacity to the right of the blade
- 12 inch max rip capacity to the left of the blade
- Premium fence is built for precision measurement and minimal deflection
Heavy Cabinet Saw Control Without Fighting the Machine
A good cabinet saw should feel solid, not stubborn. SawStop uses large cast iron hand wheels, a heavy trunnion and arbor design, and a stable cabinet base so adjustments stay smooth and cuts stay consistent.
- 7 inch cast iron hand wheels with chrome handles
- Two V-ribbed belts help transfer power with minimal vibration
- Left-tilt blade design and bold scale support accurate angle setup
What’s in the Box
- (1) 1.75 HP Professional Cabinet Saw (PCS175)
- (1) Premium Fence Assembly (TSA-PFA)
- (2) Cast Iron Extension Wings
- (1) Miter Gauge
- (1) Micro Blade Guard for 1.75 HP models
- (1) Riving Knife
- (2) Blade Wrenches
- (1) Push Stick
- (1) 10 inch Blade
- (1) Standard Lockdown Insert
- (1) Standard Brake Cartridge
- (1) Owner’s Manual
- (2) Hardware Packs
- (1) 3 mm Hex Key
- (1) 5 mm Hex Key
- (1) 8 mm Hex Key
- (1) Blade Spacing Adjustment Gauge
Dado brake cartridge, dado insert, and optional dust collection accessories are sold separately.
Key Specifications
| Tool Type | Cabinet Table Saw |
|---|---|
| Blade Diameter | 10 in |
| Motor Output | 1.75 HP |
| Voltage | 120 V |
| Amperage | 14 A |
| Rip Capacity Right of Blade | 30 in |
| Rip Capacity Left of Blade | 12 in |
| Max Depth of Cut at 0 Degrees | 3-1/8 in |
| Max Depth of Cut at 45 Degrees | 2-1/4 in |
| Blade Tilt | Left |
| Arbor Diameter | 5/8 in |
| Max Dado Width | 29/32 in |
| Dado Diameter | 8 in |
| Dust Port Diameter | 4 in |
| Overall Dimensions | 61-3/4 in W x 31-1/8 in D x 34 in H |
| Assembled Weight with 30 in Fence | 367 lbs |
Compatibility
Power Configuration Standard configuration is 120V, 14A. SawStop lists an optional kit that allows user configuration to 220V. Blade and Dado Fit Uses a 10 inch blade on a 5/8 inch arbor. Supports an 8 inch dado setup up to 29/32 inch wide with the required dado brake cartridge and insert. Dust Collection Main dust collection port is 4 inches. Optional blade guard and overarm dust collection accessories are available for more complete above-table dust capture.
Built For
WoodworkingCabinetmakingFurniture BuildingBuilt-Ins and Trim PrepProfessional ShopsSerious DIY / HobbyistRepeat Rip CutsPrecision Table Saw Work
Pro Tip
If you know you will cut dados, order the dado brake cartridge and proper insert with the saw instead of waiting until setup day. It is one of those small planning moves that keeps a new cabinet saw from sitting idle while you chase parts.
Warranty & Support
2 year warranty.
Tool Nut’s Take
Tool Nut’s Take
Why the SawStop PCS175-PFA30 Professional Cabinet Saw earns shop space
This is the cabinet saw for the buyer who wants real cast iron stability, a fence that tracks true, and the safety feature that changed the category.
- Who it’s for: Woodworkers, cabinet shops, schools, and serious hobbyists who want a stationary table saw for precision ripping and everyday shop production.
- Why it stands out: The safety system gets the attention, but the heavy cabinet build, tight published tolerances, and 30 inch Premium Fence are what make it a machine you will actually enjoy using every day.
- Worth knowing: This is the 1.75 HP, 120V version, so make sure that matches your shop power and workload. If dado work is on the list, plan on the proper brake cartridge and insert up front.
Common Questions
- Is this a cabinet saw or a jobsite saw? This is a cabinet table saw designed for stationary shop use.
- What is the rip capacity on this version? This PCS175-PFA30 setup provides 30 inches of rip capacity to the right of the blade and 12 inches to the left.
- Can it run a dado stack? Yes. It accepts an 8 inch dado setup up to 29/32 inch wide, but it requires a dado brake cartridge and insert.
- What power does it need? Standard configuration is 120 volts at 14 amps. SawStop also lists an optional kit for user configuration to 220 volts.
