Key Features
Captures Table-Top DustThe heavy-duty 4 inch overarm pulls dust from above the blade where it usually escapes. That means a cleaner cut line, less airborne dust, and less cleanup around the saw. Wide Adjustment RangeWith 35-3/4 inch to 68 inch distance from the blade to the end of the extension table and adjustable height above the floor, this setup gives you room to fit different table saw layouts. Fast Blade AccessThe transparent blade cover lifts easily and the rigid steel overarm swings out of the way, so you can get to the blade quickly without fighting the guard every time you need access.
Overview

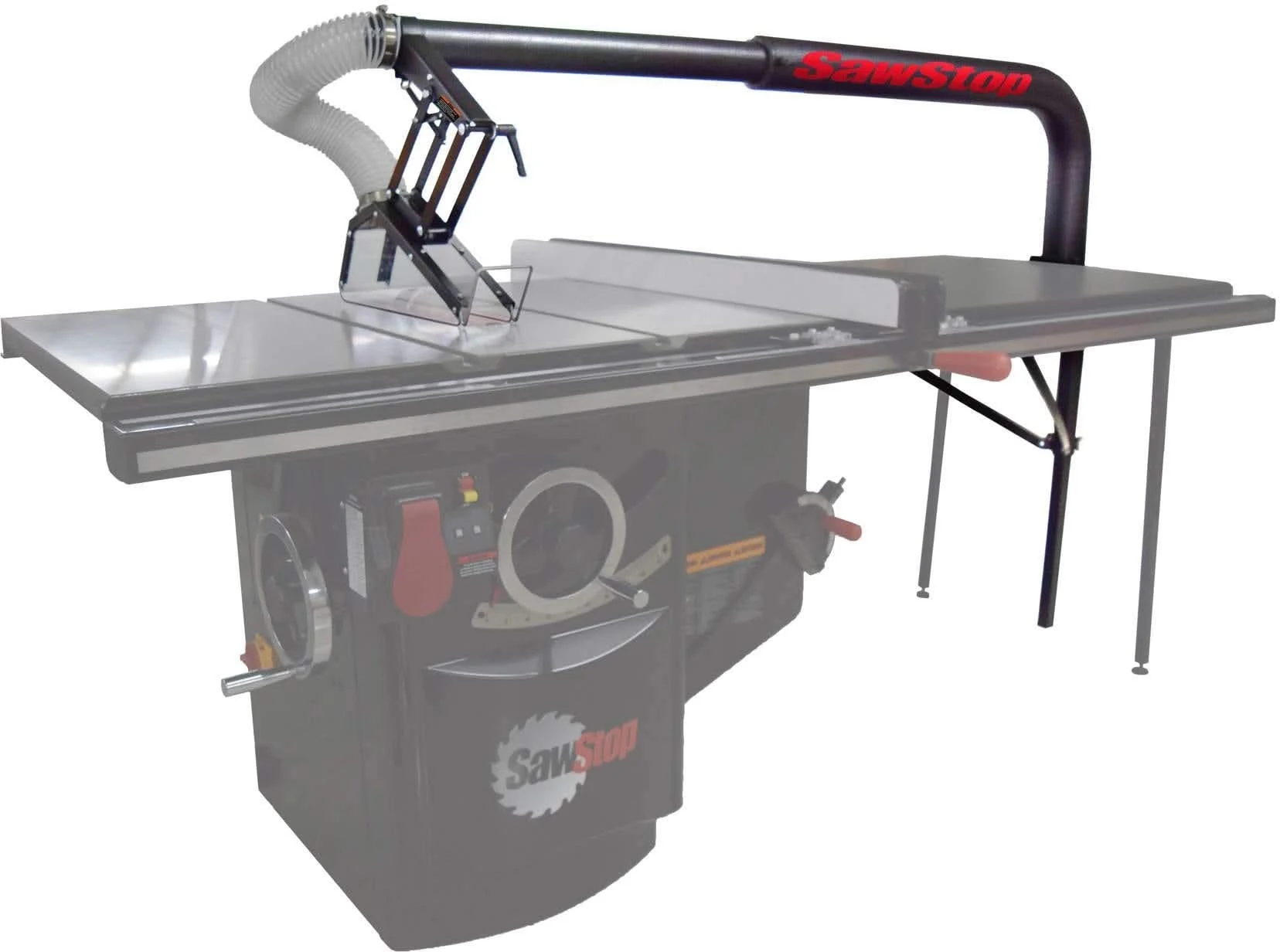

The SawStop TSG-FDC Floating Overarm Dust Collection Guard is a table saw accessory built to improve above-table dust collection while adding a clear blade guard over the cut area. This is a table saw accessory designed for dust collection and blade-area protection during table saw cutting. Model Number: TSG-FDC. If you want cleaner operation on a cabinet saw or shop table saw setup, this is the kind of add-on that makes the saw more pleasant to use day after day.
What matters here is not just that it covers the blade, but how it handles real work. The heavy-duty 4 inch overarm is built to remove table-top dust in both standard and non-through cuts, which is where a lot of fine dust normally escapes into the air. The wide pipe is intended for high air volume collection, and the system uses a 4 inch outer dust tube with a 3 inch inner dust tube to move debris away from the cut zone. For anyone cutting hardwood, sheet goods, or repeat parts at the saw, that means better visibility and less dust sitting on the table.
The guard itself measures 3-1/2 inches by 18-1/2 inches, giving you broad coverage over the blade area without blocking the view of the cut. Because the blade cover is transparent, you can still see what is happening at the cut line. That is a practical detail, not just a convenience. On a table saw, being able to track the stock and blade position clearly helps you work more confidently, especially when you are feeding longer material or dialing in accurate rip cuts.
SawStop also designed this setup around access and movement. The transparent blade cover is engineered to lift easily for quick blade access, and the rigid steel overarm swings smoothly away and back into operating position. That matters when you are changing blades, setting up jigs, checking alignment, or switching between operations. If a guard is a pain to move, people stop using it. This design is built to stay usable in a real shop instead of becoming something that gets taken off and left in the corner.
Adjustment range is another big part of why this accessory works across different setups. The distance between the blade and the end of the extension table adjusts from 35-3/4 inches to 68 inches, giving it flexibility for a range of table configurations. The outer dust tube height sits 13-1/2 inches above the table, while the outer tube height above the floor adjusts from 33-1/2 inches to 50 inches. In plain terms, it gives you the reach and clearance needed to set the guard where it belongs over the blade without making the whole saw feel cramped.
At 58 lbs, this is not a light-duty add-on, and that is a good thing here. The weight and steel structure point to a more stable overarm assembly that is meant to stay put once installed. For a dust collection guard, stiffness matters. A floppy arm or weak support makes feeding stock awkward and puts the guard where you do not want it. This setup is built more like a permanent shop upgrade than a throw-on accessory.
The SawStop TSG-FDC Floating Overarm Dust Collection Guard is best suited for woodworkers, cabinet shops, furniture makers, school shops, and serious home users who want better table saw dust control without giving up blade visibility. If you use your table saw often and are tired of dust rolling off the top of the blade area, this is one of those accessories that solves a real shop problem in a straightforward way.
Cleaner Cuts, Less Airborne Dust
This is where the SawStop TSG-FDC Floating Overarm Dust Collection Guard earns its keep. It pulls dust from above the blade instead of letting it spread across the table and into the air around the operator.
- Designed to remove table-top dust in standard and non-through cuts
- Heavy-duty 4 inch overarm supports high air volume collection
Easy Access When You Need the Blade
Good guards only help if they are easy to live with. The clear blade cover lifts for fast access, and the overarm swings away and back without a lot of fuss during setup or maintenance.
- Transparent blade cover helps maintain sight of the cutting area
- Rigid steel overarm is built to swing smoothly into and out of position
Built to Fit a Real Table Saw Setup
This system is made for more than a basic bolt-on fit. The reach and height range give you room to position the guard correctly over the saw, especially on larger extension table setups.
- Distance from blade to end of extension table adjusts from 35-3/4 inches to 68 inches
- Outer dust tube height above floor adjusts from 33-1/2 inches to 50 inches
Strong Structure, Clear View
The combination of a rigid steel arm and a clear blade enclosure gives you the two things you actually want at the saw: stability and visibility. It feels like a permanent shop upgrade, not a temporary add-on.
- Guard dimensions measure 3-1/2 inches x 18-1/2 inches
- Net weight is 58 lbs for a more substantial installed setup
What’s in the Box
- (1) Extension leg
- (1) Dust collection guard mounting bracket
- (2) Leg support brackets
- (1) Outer dust tube
- (1) Inner dust tube
- (1) Floating dust collection blade guard
- (1) Owner’s manual
- (1) Hardware pack
Key Specifications
| Weight (lbs) | 58 lbs |
|---|---|
| Blade Guard Dimensions | 3-1/2 in x 18-1/2 in |
| Distance Between Blade and End of Extension Table | 35-3/4 in to 68 in |
| Inner Dust Tube Diameter | 3 in |
| Outer Dust Tube Diameter | 4 in |
| Outer Dust Tube Height Above Table | 13-1/2 in |
| Outer Dust Tube Height Above Floor | 33-1/2 in to 50 in |
Built For
WoodworkingCabinet ShopsFurniture MakingTable Saw Dust CollectionRip CuttingSchool Shops
Pro Tip
When you set up the SawStop TSG-FDC Floating Overarm Dust Collection Guard, take the extra minute to position the guard so it stays centered over the blade through the full cut path. That makes the most of the 4 inch overarm airflow and keeps the clear guard from becoming something you have to readjust every time you change operations.
Warranty & Support
1 year warranty.
Tool Nut’s Take
Tool Nut’s Take
Why the SawStop TSG-FDC Floating Overarm Dust Collection Guard Makes Sense
If you spend real time at the table saw, this is the kind of upgrade that makes the machine cleaner, easier to use, and just plain better in the shop.
- Who it’s for: Woodworkers and shop owners who want better above-blade dust collection and a clear guard that stays practical during everyday cutting.
- Why it stands out: The big win is combining a rigid steel overarm, transparent blade coverage, and high-volume 4 inch dust collection in one setup.
- Worth knowing: At 58 lbs, this is a substantial accessory. That extra heft is part of why it feels more like a permanent solution than a lightweight add-on.
Common Questions
- What type of product is this? It is a table saw accessory designed for dust collection and operator protection at the blade area.
- Does it support non-through cuts? Yes. The product description states it is designed to remove table-top dust in both standard and non-through cuts.
- What size dust tubes does it use? The inner dust tube diameter is 3 inches and the outer dust tube diameter is 4 inches.
- How much adjustment range does it have? The distance between the blade and the end of the extension table adjusts from 35-3/4 inches to 68 inches, and the outer dust tube height above the floor adjusts from 33-1/2 inches to 50 inches.
