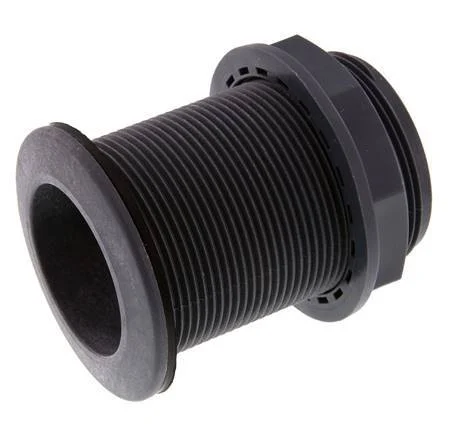

Screw Connection for Drain Cocks G2” DN45.5 Bulkhead Polypropylene (pp) EPDM 10bar (140.5psi) FDA

This plastic fitting is used to hold drain cocks in barrels, containers, or canisters. It is made of PP (polypropylene) with an EPDM seal that makes it suitable for applications within a temperature range from 5 to 80 °C (41 to 176 °F). The seal material is EPDM. The maximum operating pressure is 10 bar (140.5 psi). The body material is FDA approved.

Note: Never use plastic pipe fittings and pipes with compressed air or gas. For plastic-to-plastic threaded connections, it is not recommended to use tape or sealant containing PTFE.

Specifications

Thread : 2 inch
Connection type : Outer thread cylindrical BSPP-G
Material : Polypropylene (PP)
Seal material : EPDM
Nominal diameter (mm) : 45.5
Max pressure at 20 °C (bar) : 10
Min temperature (°C) : 5
Max temperature (°C) : 80
Approval : FDA
Bulkhead length (mm) : 77.5
Bulkhead nut : G 2 inch
Length (mm) : 91
Material connection 1 : Polypropylene (PP)
Material connection 2 : Polypropylene (PP)
Shape : Straight
With drain : No
