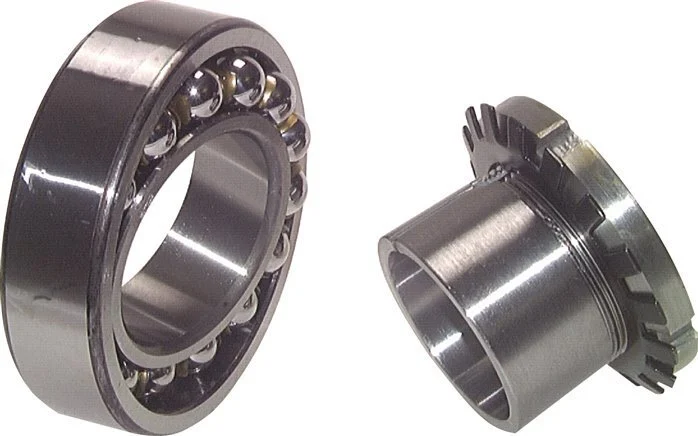

Self-aligning Ball Bearing Tapered Bore 45x90x23mm DIN 630 2RS1

Mount this self-aligning ball bearing on a 45 mm shaft where static and dynamic misalignment occurs. In this bearing, the outer ring has a single sphered raceway and the inner ring has two deep grooves formed by uninterrupted raceways. Angular misalignment of the shaft relative to the housing, such as shaft deflection, does not affect the bearing. This bearing has an open design which means the rolling elements are exposed and need to be lubricated properly for reliable operation. This bearing has a 2RS1 design which means the rolling elements are sealed with rubber seals on both sides. The bearing is pre-lubricated with a high quality grease.

Pros:

• Ideal for high-speed and light load applications
• Requires minimal maintenance because of low heat generation

Specifications

Material : Steel
Suitable for shaft diameter (mm) : 45
Inner diameter (mm) : 45
Outer-diameter (mm) : 90
Length (mm) : 23
SKF bearing coding suffix : 2RS1,K
FAG bearing coding suffix : 2RSR,K
Model : Ball bearing
