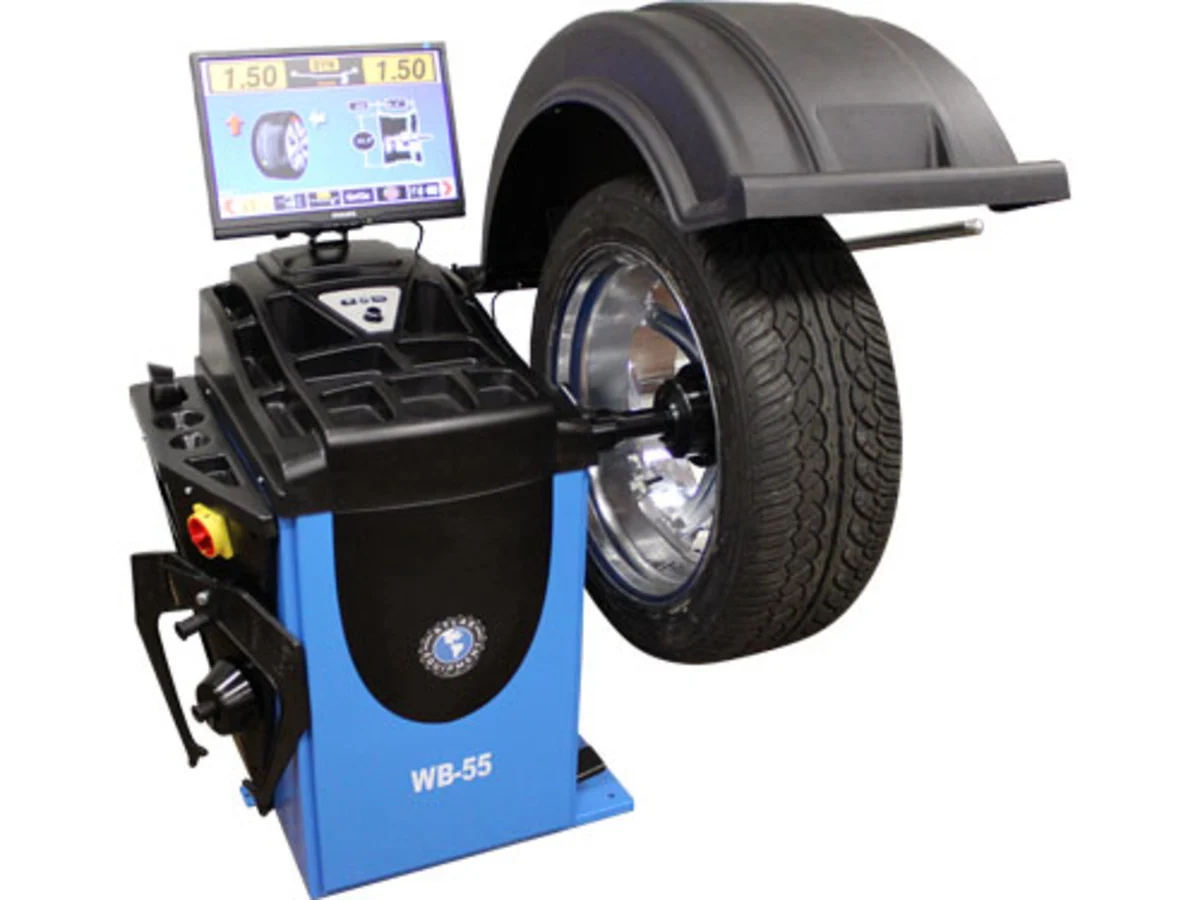

Self-Calibrating Computer Wheel Balancer TW-100-WB55 (Replaced by 100-ATWB492PRO

The 3-D WB-55 has a 19 inch LED LCD digital flat screen that displays high resolution tire and wheel images, providing a clear “picture” of tire/wheel assembly and out of balance condition. The WB-55 incorporates the InstaInput (I/I) measuring system that automatically enters all three parameters (rim size, rim width, and distance of rim from machine) when the operator touches the inside and outside of the mounted rim with the built-in measuring rods. The Smarts elector(S/S) allows the operator to turn one knob and select the desired balancing mode. The seven (7) second spin time is extremely fast and the software combined with a sophisticated measuring system delivers unparalleled accuracy.

“Split-Weight” Feature: The measuring guide rod for the automatic data entry is also used to determine the placement of wheel weights when used with the “split-weight” feature of the WB-55.

Many custom rims have decorative spokes and certain customers do not want any wheel weights to be “seen” on these fancy wheels. The only place to “hide” the stick-on weights is behind the spokes of the wheel.

The “split-weight” feature allows the operator to ” split ” the correct amount of weight and “hide” these weights behind the spokes. The measuring guide rod is used to pinpoint the placement of the weights and the WB-55’s software determines the amount of weight that needs to be applied.

The WB-55 is very a simple, yet sophisticated wheel balancer. Each electrical component part is virtually “plug and play” so repair is easy when it is time to replace parts. The WB-55 is capable of self-diagnosing problems and displays error codes so the operator can make the necessary adjustments or repairs in his own shop. There is no need to wait for the high priced service technician to visit your store. The simplicity of the WB-55, both in ease of use and ease of repair, make this balancer the perfect choice for your professional tire shop.
