WAADAAISO2511 Includes Only:
- AutoISO-2511 Adapter
- K-09 Crocodile clip, yellow, 11 kV, CAT IV 1000 V
- K-09 Crocodile clip, blue, 11 kV, 32 A
- 4 x K-09 Crocodile clip, black, 11 kV, 32 A
Features:

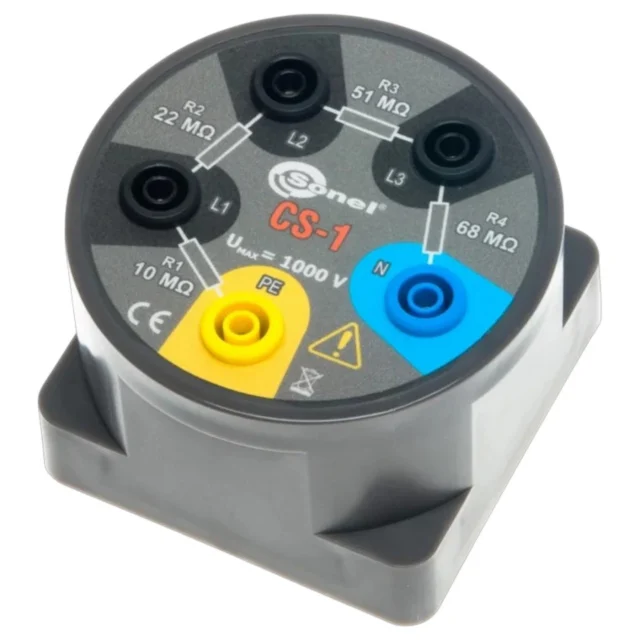

- Designed for insulation resistance simulation of power cables.
- Equipped with highly accurate resistors.
- Intended for training, presentation and auxiliary purposes – for instance in a situation, where general estimation of the measurement correctness is needed.
- CS-1 enables the measurement of four resistance values and their combination.
- The device utilizes 4 mm banana plugs.
- Its casing is characterized by high resistance to mechanical damage.
This product fits:
- MPI-536 Multi-function meter of electrical system parameters NO. CAT. WMGBMPI53
- MPI-540 Multi-function meter of electrical system parameters NO. CAT. WMGBMPI540
- MIC-5010 20M Insulation resistance meter NO. CAT. WMGBMIC501020M
- MIC-2511 EPA Insulation resistance meter with set for measurements in EPA zones NO. CAT. WMGBMIC2511EPA
- MIC-5010 Insulation resistance meter NO. CAT. WMGBMIC5010
- MIC-5050 15M Insulation Resistance Meter NO. CAT. WMGBMIC505015M
- MIC-15K1 Insulation Quality Analyzer NO. CAT. WMGBMIC15K15
- MIC-5050 20M Insulation Resistance Meter NO. CAT. WMGBMIC505020M
- MIC-5010 10M Insulation resistance meter NO. CAT. WMGBMIC501010M
- MPI-520 Multi-function meter of electrical system parameters NO. CAT. WMGBMPI520
- MIC-5010 Insulation resistance meter NO. CAT. WMGBMIC5010
- MPI-525 Multi-function meter of electrical system parameters NO. CAT. WMGBMPI525
- MPI-535 Multi-function meter of electrical system parameters NO. CAT. WMGBMPI535
- MIC-5050 15M Insulation Resistance Meter NO. CAT. WMGBMIC505015M
- MIC-15K1 Insulation Quality Analyzer NO. CAT. WMGBMIC15K15
- MIC-5050 20M Insulation Resistance Meter NO. CAT. WMGBMIC505020M
- MIC-5010 10M Insulation resistance meter NO. CAT. WMGBMIC501010M
- MPI-520 Multi-function meter of electrical system parameters NO. CAT. WMGBMPI520
- MIC-5005 15M Insulation resistance meter NO. CAT. WMGBMIC500515M
- MIC-10K1 Insulation Resistance Meter NO. CAT. WMGBMIC10K105
- MIC-5005 Insulation resistance meter NO. CAT. WMGBMIC5005
- MPI-530-IT Multi-function meter of electrical system parameters NO. CAT. WMGBMPI530IT
- MPI-525 Multi-function meter of electrical system parameters NO. CAT. WMGBMPI525
- MPI-535 Multi-function meter of electrical system parameters NO. CAT. WMGBMPI535
- MPI-540-PV Multi-function meter of electrical system parameters NO. CAT. WMGBMPI540PV
- MIC-5050 Insulation Resistance Meter NO. CAT. WMGBMIC5050
- MIC-5010 5M Insulation resistance meter NO. CAT. WMGBMIC50105M
- MIC-5050 5M Insulation Resistance Meter NO. CAT. WMGBMIC50505M
- MPI-530 Multi-function meter of electrical system parameters NO. CAT. WMGBMPI530
- MIC-5005 5M Insulation resistance meter NO. CAT. WMGBMIC50055M
- MIC-5005 3M Insulation resistance meter NO. CAT. WMGBMIC50053M
- MIC-2501 10M Insulation Resistance Meter NO. CAT. WMGBMIC250110M
- MIC-10K1 Insulation Resistance Meter NO. CAT. WMGBMIC10K120
- MIC-10K1 Insulation Resistance Meter NO. CAT. WMGBMIC10K110
- MIC-5 Insulation resistance meter NO. CAT. WMGBMIC5
- MIC-5005 10M Insulation resistance meter NO. CAT. WMGBMIC500510M
- MIC-15K1 Insulation Quality Analyzer NO. CAT. WMGBMIC15K1
- MIC-2501 Insulation Resistance Meter NO. CAT. WMGBMIC2501
- MIC-10K1 Insulation Resistance Meter NO. CAT. WMGBMIC10K115
- MIC-10 Insulation Resistance Meter NO. CAT. WMGBMIC10
Technical Details
| Basic technical specifications | |
| Max measuring voltage | 1000 V DC |
| Nominal resistance values | 10 MΩ, 22 MΩ, 51 MΩ, 68 MΩ |
| Nominal value accuracy | ±1% |
| Safety and conditions for use | IP40 |
| Insulation type according to EN 61010-1 | double |
| Operating temperature | -0 – +60°C | 32°F – 140°F |
| Storage temperature | -30 – +65°C | -22°F – 165°F |
| Humidity | 20 – 90% |
| Other information | |
| Quality standard – development, design and production | ISO 9001 |
