Features:

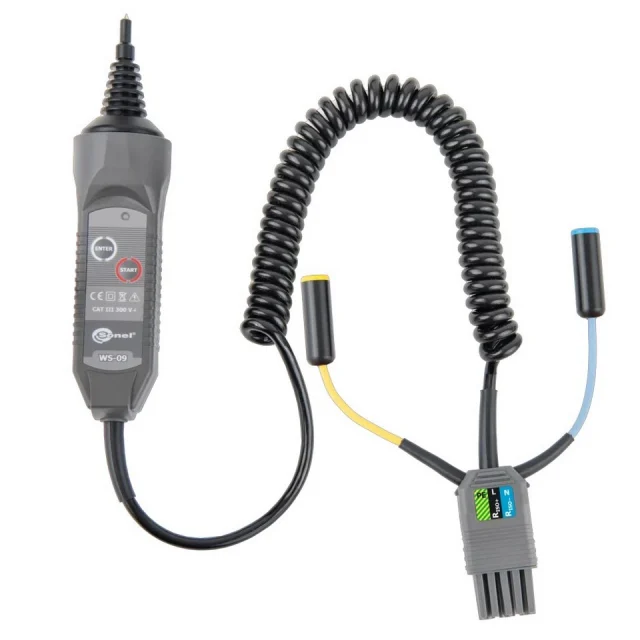

- The WS-09 adapter is an automatic three-wire pin probe.
- It provides much faster measurements by its start button located on the adapter housing.
- The adapter also has a button that allows user to save the measurement result in the memory of the meter.
- The probe used during measurements in electrical installations reduces to a minimum the operations performed on the meter itself, significantly improving the efficiency of work.
Measurement category acc. to EN IEC 61010-2-030:
- With limiter on measuring end: CAT III 300 V
- Without a limiter on measuring end: CAT II 600 V
This product fits:
- MPI-540-PV Multi-function meter of electrical system parameters NO. CAT. WMGBMPI540PV
- MPI-536 Multi-function meter of electrical system parameters NO. CAT. WMGBMPI536
- MPI-540 Multi-function meter of electrical system parameters NO. CAT. WMGBMPI540
- MPI-540 Start Multi-function meter of electrical system parameters without flexible coils NO. CAT. WMGBMPI540NC
- MPI-540-PV Solar Set of meters for measuring photovoltaic installations NO. CAT. WMGBMPI540PVIRM1
- MPI-535 Multi-function meter of electrical system parameters NO. CAT. WMGBMPI535
Technical Details
| Measurement category acc. to EN IEC 61010-2-030 |
|
| Type of insulation | double |
| Measuring end | pin-type |
| Plug |
|
| Long-lasting load | 10 A |
| Maximum voltage | 600 V AC / DC |
| The product meets the requirements of | EN IEC 61010-031 |
