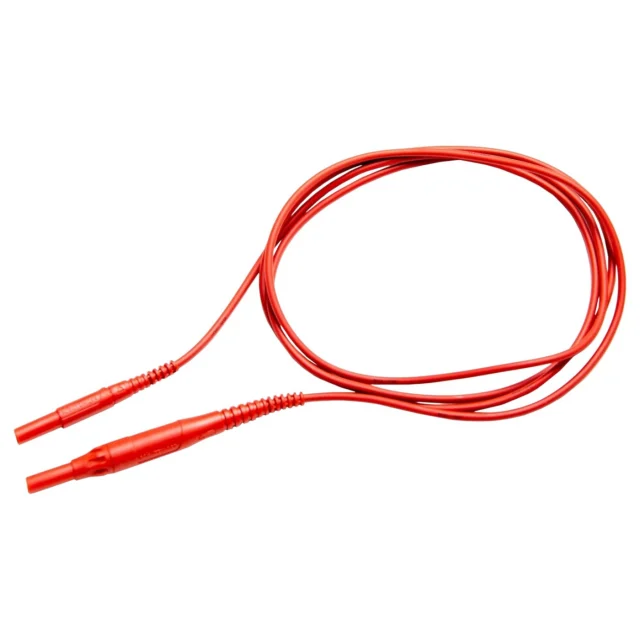

Sonel, WAPRZ002REBBF10, Red 2m Test Lead, CAT IV 1000 V, Banana Plugs, Fused 10 A
Features:
- Sonel test lead, length: 2 m, red, CAT IV 1000 V.
- The cable is terminated with easily connected banana plugs provided with a built-in fuse socket.
This product fits:
- CMP-403 Digital clamp meter NO. CAT. WMGBCMP403
- PVM-1530 Pro Photovoltaic meters NO. CAT. WMUSPVM1530PRO
- TKF-13 Phase sequence and motor rotation tester NO. CAT. WMGBTKF13
- TDR-410 Reflectometer NO. CAT. WMGBTDR410
- CMP-2000 Digital Clamp Meter NO. CAT. WMGBCMP2000
- CMM-11 Digital Multimeter NO. CAT. WMGBCMM11
- CMM-40 Industrial Multimeter NO. CAT. WMGBCMM40
- TDR-420 Reflectometer NO. CAT. WMGBTDR420
- CMP-1010 Digital clamp meter NO. CAT. WMGBCMP1010
- CMP-200F Fork clamp meter NO. CAT. WMGBCMP200F
Technical Details
| Technical parameters | |
| Measuring plug | 4 mm |
| Rated current | 10 A |
| Rated voltage | 1000 V |
| Lead length | 2 m |
| Lead colour | red |
| Insulation material | PVC |
| Contact material | Nickel-Plated |
| Safety Specifications | |
| Measurement category | IV 1000 V acc. to EN 61010-1 |
| Fuse | |
| Characteristic | FF (very fast acting) |
| Rated current | 10 A |
| Rated voltage | 600 V AC |
| Dimensions | 6,3 X 32 mm |
