Features:
- If the site insulation is used as a means of protection against electric shock, the insulation resistance of floors and walls should be checked with an appropriate measuring instrument using a probe dedicated for this purpose.

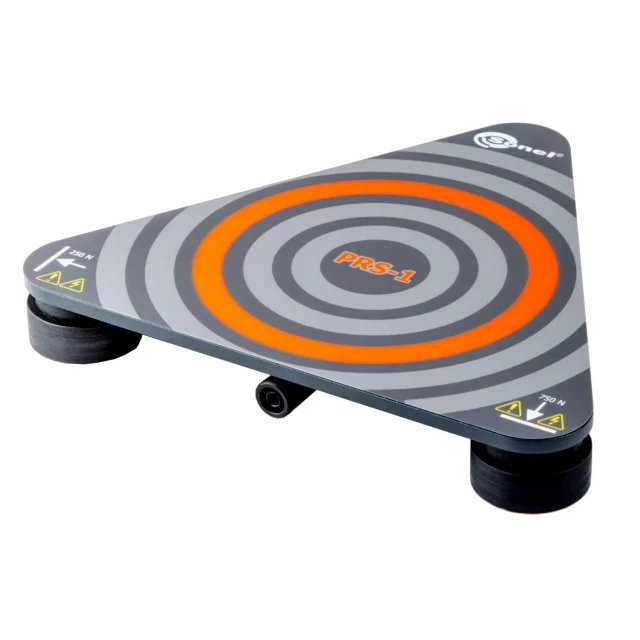

- PRS-1 has the shape of an equilateral triangle and has been made according to the guidelines provided in for in the HD 60364-6 and EN 1081 standards.
- Legs of the probe were made with a special rubber mix – volume resistance of a single leg does not exceed 5 kΩ, and the hardness is in the range between 50 to 70 IRHD.
- With appropriate pressure on the probe, such a design solution will ensure approx. 900 mm2 contact surface area with the tested plane.
This product fits:
- MPI-536 Multi-function meter of electrical system parameters NO. CAT. WMGBMPI536
- MPI-540 Multi-function meter of electrical system parameters NO. CAT. WMGBMPI540
- MIC-5010 20M Insulation resistance meter NO. CAT. WMGBMIC501020M
- MPI-540 Start Multi-function meter of electrical system parameters without flexible coils NO. CAT. WMGBMPI540NC
- MPI-535 Multi-function meter of electrical system parameters NO. CAT. WMGBMPI535
- MIC-2511 EPA Insulation resistance meter with set for measurements in EPA zones NO. CAT. WMGBMIC2511EPA
- MPI-525 Multi-function meter of electrical system parameters NO. CAT. WMGBMPI525
- MIC-5010 Insulation resistance meter NO. CAT. WMGBMIC5010
- PRZ-2 Kit for measuring resistance in zones with ESD protection NO. CAT. WASONPRZ2
- MIC-5050 15M Insulation Resistance Meter NO. CAT. WMGBMIC505015M
- MIC-2511 EPA Insulation resistance meter with set for measurements in EPA zones NO. CAT. WMGBMIC2511EPA
- MPI-525 Multi-function meter of electrical system parameters NO. CAT. WMGBMPI525
- MIC-5010 Insulation resistance meter NO. CAT. WMGBMIC5010
- PRZ-2 Kit for measuring resistance in zones with ESD protection NO. CAT. WASONPRZ2
- MIC-5050 15M Insulation Resistance Meter NO. CAT. WMGBMIC505015M
- MIC-5050 20M Insulation Resistance Meter NO. CAT. WMGBMIC505020M
- MIC-15K1 Insulation Quality Analyzer NO. CAT. WMGBMIC15K15
- MIC-5010 10M Insulation resistance meter NO. CAT. WMGBMIC501010M
- MPI-520 Multi-function meter of electrical system parameters NO. CAT. WMGBMPI520
- MIC-30 Insulation Resistance Meter NO. CAT. WMGBMIC30
- MIC-10K1 Insulation Resistance Meter NO. CAT. WMGBMIC10K105
- MIC-5001 Insulation Resistance Meter NO. CAT. WMGBMIC5001
- MPI-530 Multi-function meter of electrical system parameters NO. CAT. WMGBMPI530
- PRZ-2 MIC Kit for measuring resistance in zones with ESD protection with space for meter NO. CAT. WASONPRZ2MIC
- MIC-5005 15M Insulation resistance meter NO. CAT. WMGBMIC500515M
- MIC-5005 5M Insulation resistance meter NO. CAT. WMGBMIC50055M
- MIC-5005 3M Insulation resistance meter NO. CAT. WMGBMIC50053M
- MIC-5005 Insulation resistance meter NO. CAT. WMGBMIC5005
- MIC-10K1 Insulation Resistance Meter NO. CAT. WMGBMIC10K120
- MPI-530-IT Multi-function meter of electrical system parameters NO. CAT. WMGBMPI530IT
- MIC-10K1 Insulation Resistance Meter NO. CAT. WMGBMIC10K120
- MPI-530-IT Multi-function meter of electrical system parameters NO. CAT. WMGBMPI530IT
- MPI-540-PV Multi-function meter of electrical system parameters NO. CAT. WMGBMPI540PV
- MIC-5050 Insulation Resistance Meter NO. CAT. WMGBMIC5050
- MIC-5010 5M Insulation resistance meter NO. CAT. WMGBMIC50105M
- MIC-5050 5M Insulation Resistance Meter NO. CAT. WMGBMIC50505M
- MIC-15K1 Insulation Quality Analyzer NO. CAT. WMGBMIC15K1
- MIC-2501 10M Insulation Resistance Meter NO. CAT. WMGBMIC250110M
- MIC-10K1 Insulation Resistance Meter NO. CAT. WMGBMIC10K115
- MIC-2501 Insulation Resistance Meter NO. CAT. WMGBMIC2501
- MIC-10 Insulation Resistance Meter NO. CAT. WMGBMIC10
