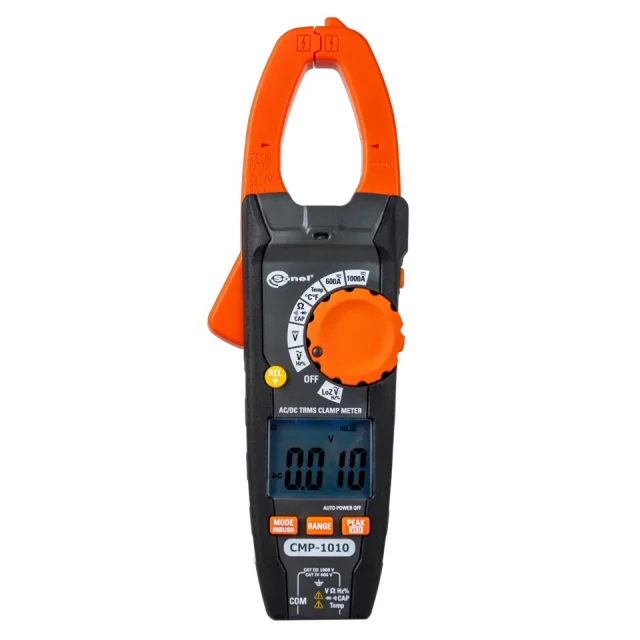

Sonel WMGBCMP1010 Digital Clamp Meter

Sonel WMGBCMP1010 Digital Clamp Meter

Original price was: $284.50.Current price is: $71.13.

Buy now
SKU: WMGBCMP1010 Category: Tag:

WMGBCMP1010 Includes Only:

  • Clamp Meter
  • Type K temperature probe
  • Temperature probe type K adapter

Basic features:

  • Counting: 6.000 digits
  • HOLD
  • Automatic range selection

Advanced features:

  • Current and voltage measurements downstream the inverter, frequency converter or in the VFD system
  • Inrush current
  • Non-contact voltage detector
  • Peak MIN / Peak MAX
  • Relative measurement REL
  • TRMS measurement

Other features:

  • Auto-off
  • Empty battery indication
  • Integrated flashlight
  • Beeper
  • Display:
    • Type: segment-based LCD, 4 digits
    • Display backlight: manual

The Sonel CMP-1010 measures AC and DC current, AC and DC voltage and more. The meter provides precise measurements downstream of frequency converters. The device is versatile due to many measurement options, including low-impedance voltage measurement (Low Z). Darkness in the workplace is not a problem thanks to the built-in flashlight.

For more information, please see Data Sheet

Technical Details

AC current
  • Range: up to 1000 A
  • Resolution: from 0.1 A
  • Accuracy: from ±(2.5% m.v. + 8 digits)
DC current
  • Range: up to 1000 A
  • Resolution: from 0.1 A
  • Accuracy: from ±(2.5% m.v. + 5 digits)
AC current
  • Range: up to 1000 V
  • Resolution: from 0.001 V
  • Accuracy: ±(1.5% m.v. + 5 digits)
DC current
  • Range: up to 1000 V
  • Resolution: from 0.1 mV
  • Accuracy: from ±(0.5% m.v. + 5 digits)
Low Z
  • Range: up to 300.0 V
  • Resolution: from 0.001 V
  • Accuracy: ±(3.0% m.v. + 40 digits)
Resistance
  • Range: up to 60.00 MΩ
  • Resolution: from 0.1 Ω
  • Accuracy: from ±(1.0% m.v. + 4 digits)
Frequency
  • Range: up to 99.99 kHz
  • Resolution: from 0.001 Hz
  • Accuracy: ±(1.2% m.v. + 5 digits)
Capacitance
  • Range: up to 100.0 mF
  • Resolution: from 0.01 nF
  • Accuracy: from ±(3.0% m.v. + 5 digits)
Duty cycle (%)
  • Range: 10.0 – 90.0%
  • Resolution: 0.10%
  • Accuracy: ±(1.2% m.v. + 2 digits)
Temperature measurement
  • Range: -20.0 – +1000°C / -4.0 – +1832°F
  • Resolution: 0.1°C/ 0.1°F
  • Accuracy: ±(3% m.v. + 5°C) / ±(3% m.v. + 9°F)
