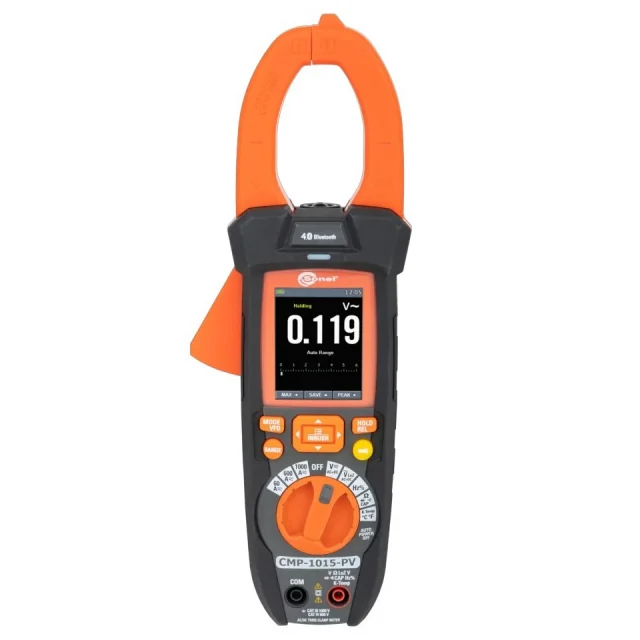

Sonel WMGBCMP1015PV Digital Clamp Meter for Photovoltaic Installation

Sonel WMGBCMP1015PV Digital Clamp Meter for Photovoltaic Installation

Original price was: $490.60.Current price is: $98.12.

Buy now
SKU: WMGBCMP1015PV Category: Tag:

WMGBCMP1015PV Includes Only:

  • Clamp Meter
  • Type K temperature probe
  • Temperature probe type K adapter

Basic features:

  • HOLD
  • Automatic range selection

Advanced features:

  • Current and voltage measurements downstream the inverter, frequency converter or in the VFD system
  • High voltage DC measurement (HVDC)
  • Inrush current
  • Non-contact voltage detector
  • MIN / MAX
  • PEAK HOLD
  • Relative measurement REL
  • TRMS measurement
  • Memory
    • internal
      • measurements: 128 results
      • recorder: 16 recordings, 100 000 points, sampling frequency: from 1 Hz
    • external
      • in mobile application
  • Bluetooth communication

Other features:

  • Auto-off
  • Battery indication
  • Integrated flashlight
  • Beeper

Display:

  • Type: graphical LCD
  • Display backlight

The device is dedicated to measure DC current and voltage in photovoltaic installations. The device is versatile due to many measurement options. In addition to the basic measurements, the instrument has a recorder with graphs. Working in full sun is not difficult thanks to the high-brightness display.

For more information, please see Data Sheet

Technical Details

AC current
  • Range: up to 1000 A
  • Resolution: from 0.1 A
  • Accuracy: from ±(2.5% m.v. + 8 digits)
DC current
  • Range: up to 1000 A
  • Resolution: from 0.1 A
  • Accuracy: from ±(2.5% m.v. + 5 digits)
AC current
  • Range: up to 1000 V
  • Resolution: from 0.001 V
  • Accuracy: ±(1.5% m.v. + 5 digits)
DC current
  • Range: up to 1500 V
  • Resolution: from 0.1 mV
  • Accuracy: from ±(0.5% m.v. + 5 digits)
AC+DC voltage
  • Range: up to 1000 V
  • Resolution: from 0.001 mV
  • Accuracy: from ±(1.5% m.v. + 20 digits)
Low Z (AC / DC voltage)
  • Range: up to 1000.0 V
  • Resolution: from 0.001 V
  • Accuracy: ±(3.0% m.v. + 40 digits)
Low Z AC+DC
  • Range: up to 1000.0 V
  • Resolution: from 0.001 V
  • Accuracy: ±(3.5% m.v. + 40 digits)
Resistance
  • Range: up to 60.00 MΩ
  • Resolution: from 0.1 Ω
  • Accuracy: from ±(1.0% m.v. + 4 digits)
Frequency
  • Range: up to 10.00 MHz
  • Resolution: from 0.01 Hz
  • Accuracy: ±(0.2% m.v. + 5 digits)
Capacitance
  • Range: up to 100.0 mF
  • Resolution: from 0.01 nF
  • Accuracy: from ±(3.0% m.v. + 5 digits)
Duty cycle (%)
  • Range: 10.0 – 90.0%
  • Resolution: 0.10%
  • Accuracy: ±(1.2% m.v. + 2 digits)
Temperature measurement
  • Range: -40.0 – +1000°C / -40.0 – +1832°F
  • Resolution: 0.1°C/ 0.1°F
  • Accuracy: ±(1.5% m.v. + 3°C) / ±(1% m.v. + 5.4°F)
