WMGBDBTHERMO Includes Only:
- Demonstration Board
- Power supply 24 V DC / 4 A
Features:
- The DB-THERMO board is an indispensable device during any training on contactless temperature measurements and thermal imaging with the use of thermographic cameras.
- DB-Thermo helps to understand the phenomena related to the emissivity of different materials and the influence of surface type on temperature measurement.
- The DB-THERMO set includes instructions describing all topics concerning thermal imaging.
- The device is enclosed in a solid briefcase housing with a detachable cover.

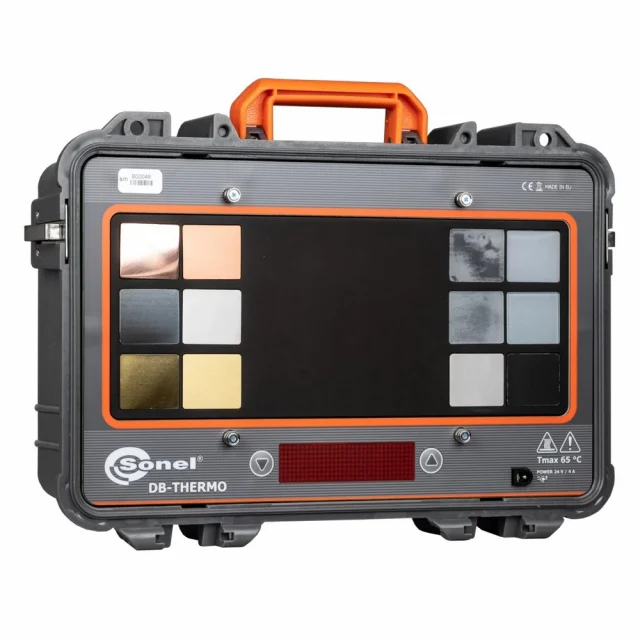

DB-THERMO has a heating panel with an emissivity of 0.98 as well as plates made of various typical materials, with matte and polished surfaces. A programmable controller keeps watch over the temperature of the heating panel. The user may select a temperature from within the range of 40…60°C. The LED display reads the current panel temperature.
For more information, please see Data Sheet
Technical Details
| Heating panel temperature | |
| Regulation range | 40°C…60°C |
| Reading accuracy | ±2% |
| Resolution of readings | 0.1°C |
| Resolution of settings | 1°C |
| Hysteresis | ±1.5°C |
| Temperature stabilization time | <5 min |
| Heating panel dimensions | 275 x 110 mm |
| Display | LED |
| Power supply | 24 V DC |
| Power consumption | max. 100 W |
| Thermal protection | 85°C |
| Safety and work conditions | |
| Ingress protection | IP20 |
| Type of insulation according to EN 61010-1 | CAT II 300 V |
| Operating temperature | 10 – +40°C |
| Storage temperatured | -20 – +70°C |
