Features:
- autoranging/manual range selection,
- „DATA HOLD” function, for holding measured values,
- „REL” function, which allows you to make measurements relative to a stored reference value,
- „MAX/MIN” function,
- „PEAK HOLD” function,
- memory for 2,000 measurement results,
- continuity test with acoustic signalling (beeper),
- „AUTO-OFF” function,
- display 4¾ digits (40,000 max),
- double molded, waterproof casing.

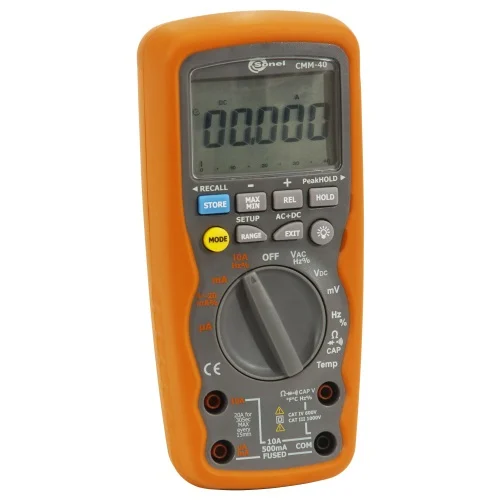

Industrial multimeter CMM-40 was designed for the purpose of measurements of AC/DC voltage, AC/DC current, resistance, capacitance, frequency (electrical and electronic), duty cycle, temperature and also for testing diodes and continuity.
Technical Details
| Power supply | 9 V battery type 6LR61 |
| Diode test | I=0.9 mA, U0 = 2.8 V DC |
| Continuity test | I<0.35 mA, sound signal for R<35 Ω |
| Over range indication | 0L displayed |
| Dimensions | 7.36″ x 3.19″ x 2.17″ / 187 x 81 x 55 mm |
| Weight | 0.75 lbs / 342 g |
| Auto power OFF | 15 min. |
