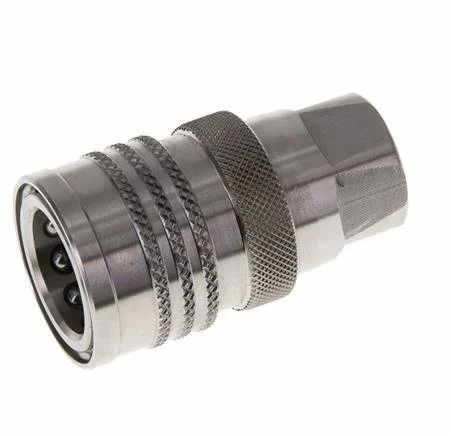

Stainless Steel DN 10 Coupling For Washing Machine Socket G 3/8 inch Male Threads Double Shut-Off

Stainless steel DN 10 coupling for washing machine socket with G 3/8 inch male threads. They are typically used for water lines to quickly connect and disconnect secure connections.

The G 3/8 inch male threads allow for it to be threaded onto a matching female threaded part. The coupling has a non-return valve to prevent backflow and the push-in socket also closes when disconnected. This is considered a double-sided shut-off design. The maximum operating pressure is 300 bar (4350 psi). The coupling is suitable for temperatures between -40 to 200 °C (-40 to 392 °F). The seal material is FKM. The housing material is stainless steel 316 (1.4436).

Note: Plugs and sockets only combine when both are double sided shut-off or when both are standard.

Pros:

• These couplings are suitable for high pressure cleaning guns, like WAP or Karcher.
• The socket has a double sided shut-off design, which keeps the line pressurized and prevents backflow

Specifications

Connection size : 3/8 inch
Nominal diameter (mm) : 10
Connection type : Outer thread cylindrical BSPP-G
Material : Stainless steel
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 300
Min temperature (°C) : -40
Max temperature (°C) : 200
Coupling features : Double sided shut-off
Quality of material : Stainless steel 316 (1.4436)
Shape : Coupling (female)
With dust cap : No
