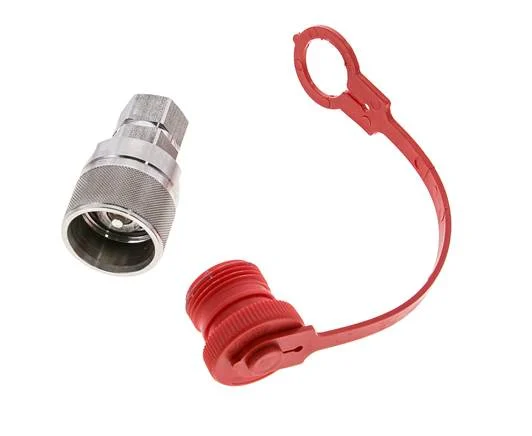

Stainless Steel DN 10 Hydraulic Coupling Plug G 3/8 inch Female Threads ISO 14541 D M28 x 2

Stainless steel DN 10 hydraulic coupling plug with G 3/8 inch female threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The G 3/8 inch female threads allow for it to be threaded onto a matching male threaded part. The maximum operating pressure is 450 bar (6525 psi). The coupling is suitable for temperatures between -20 to 150 °C (-4 to 302 °F). The housing material is stainless steel 306l (1.4404). The coupling complies with the ISO 14541 standard.

Quick fastener screw couplings shut off on the plug and the sleeve when uncoupled. The connection of the coupling sleeve and coupling plug is carried out via a screw connection with a hand nut. During the coupling procedure, the valve chamber is sealed before the valves open. When uncoupling, the valves are already closed, before the connection can be pulled out of the seal. Can be coupled up to max 50 bar under pressure.

Pros:

• Secure against pressure thrusts and pressure vibrations
• Streamlining design of the flow rate range
• Adheres to ISO 14541 worldwide standard
• They can be combined with other manufacturers, such as Parker, Rectus, Cejn, Stucci, Faster or Snap-Tite

Specifications

Connection size : 3/8 inch
Nominal diameter (mm) : 10
Plug diameter : M28 x 2
Socket diameter : 34 mm
Connection type : Inner thread cylindrical BSPP-G
Material : Stainless steel
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 450
Min temperature (°C) : -20
Max temperature (°C) : 150
Standard : ISO 14541
Quality of material : Stainless steel 306L (1.4404)
Shape : Plug (male)
With dust cap : No
