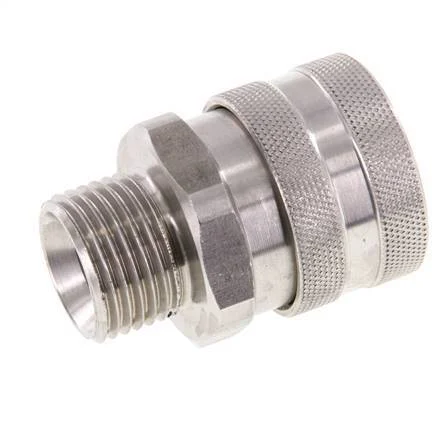

Stainless Steel DN 12 Coupling For Spray Gun Socket G 1/2 inch Female Threads

Stainless steel DN 12 coupling for spray gun socket with G 1/2 inch female threads.

The G 1/2 inch female threads allow for it to be threaded onto a matching male threaded part. The maximum operating pressure is 200 bar (2900 psi). The coupling is suitable for temperatures between 0 to 150 °C (32 to 302 °F). It is typically used for spray gun connections.

Pros:

• These couplings are suitable for high pressure cleaning guns, like WAP or Karcher.

Specifications

Connection size : 1/2 inch
Nominal diameter (mm) : 12
Connection type : Inner thread cylindrical BSPP-G
Material : Stainless steel
Max pressure at 20 °C (bar) : 200
Min temperature (°C) : 0
Max temperature (°C) : 150
Shape : Coupling (female)
With dust cap : No
