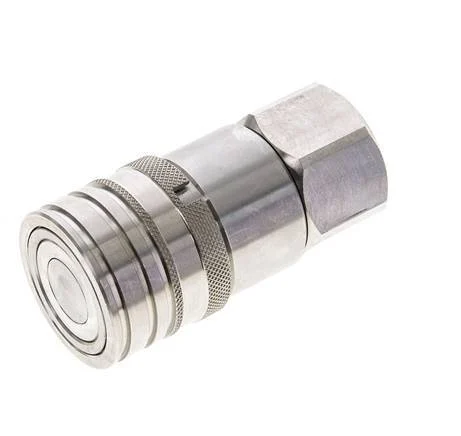

Stainless Steel DN 12 Flat Face Hydraulic Socket G 3/4 inch Female Threads ISO 16028 CEJN D 24.5mm

Stainless steel DN 12 flat face hydraulic socket with G 3/4 inch female threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The G 3/4 inch female threads allow for it to be threaded onto a matching male threaded part. The maximum operating pressure is 250 bar (3625 psi). The coupling is suitable for temperatures between -20 to 200 °C (-4 to 392 °F). The seal material is FKM. The housing material is stainless steel 303 (1.4305). The coupling complies with the ISO 16028 standard.

Pros:

• No dirt can get in as the coupling can simply be wiped clean due to the smooth flat face surface
• Axial forces can be absorbed well due to the coupling’s design, especially suited for use on hydraulic hoses
• Adheres to ISO 16028, allowing it to be interchangeable between brands

Specifications

Connection size : 3/4 inch
Nominal diameter (mm) : 12
Plug diameter : 24.5 mm
Socket diameter : 38 mm
Connection type : Inner thread cylindrical BSPP-G
Material : Stainless steel
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 250
Min temperature (°C) : -20
Max temperature (°C) : 200
Standard : ISO 16028
Quality of material : Stainless steel 303 (1.4305)
Shape : Coupling (female)
With dust cap : No
