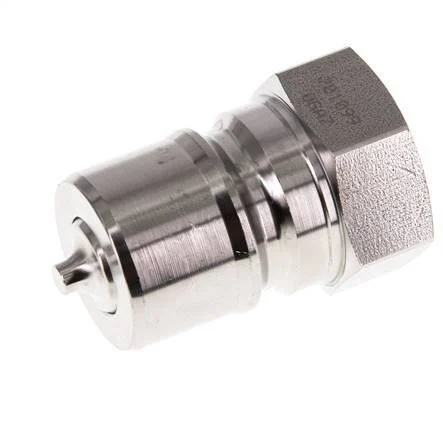

Stainless Steel DN 20 Hydraulic Coupling Plug G 3/4 inch Female Threads ISO 7241-1 B D 31.4mm

Stainless steel DN 20 hydraulic coupling plug with G 3/4 inch female threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The G 3/4 inch female threads allow for it to be threaded onto a matching male threaded part. The maximum operating pressure is 250 bar (3625 psi). The coupling is suitable for temperatures between -25 to 200 °C (-13 to 392 °F). The housing material is stainless steel 306l (1.4404). The coupling complies with the ISO 7241-1 B standard.

Pros:

• Adheres to ISO 7241-1 B worldwide standard
• They can be combined with other manufacturers, such as Parker, Rectus, Cejn, Stucci, Faster or Snap-Tite
• Brass or stainless steel couplings are suitable for applications with high demand for chemical resistance

Specifications

Connection size : 3/4 inch
Nominal diameter (mm) : 20
Plug diameter : 31.4 mm
Socket diameter : 52 mm
Connection type : Inner thread cylindrical BSPP-G
Material : Stainless steel
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 250
Min temperature (°C) : -25
Max temperature (°C) : 200
Standard : ISO 7241-1 B
Quality of material : Stainless steel 306L (1.4404)
Shape : Plug (male)
With dust cap : No
