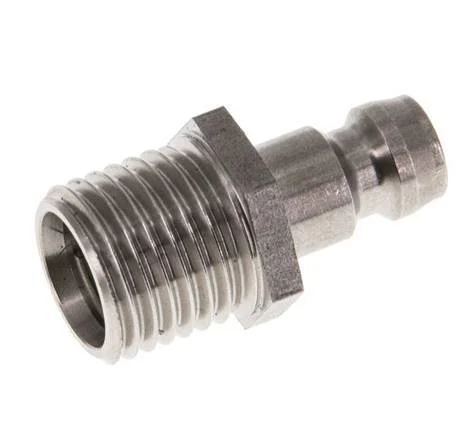

Stainless Steel DN 6 Mold Coupling Plug M14x1.5 Male Threads Double Shut-Off

Stainless steel DN 6 mold coupling plug with M14x1.5 male threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The M14x1.5 mm male threads allow for it to be threaded onto a matching female threaded part. The coupling has a non-return valve to prevent backflow and the push-in socket also closes when disconnected. This is considered a double-sided shut-off design. The operating pressure range is 0 to 15 bar (0 to 218 psi). The coupling is suitable for temperatures between -20 to 160 °C (-4 to 320 °F). The housing material is stainless steel 303 (1.4305).

Suitable for: For liquid media with temperatures up to +160 °C, e.g. for cooling circuits on plastic processing machines (+200 °C on request).

Pros:

• Mold quick release couplings are developed for use with cooling or heating lines and resistance high temperature up to +160 °C
• The plug has a double sided shut-off design, which keeps the line pressurized and prevents backflow

Specifications

Connection size : M14 x 1.5
Nominal diameter (mm) : 6
Plug diameter : 9 mm
Connection type : Outer thread metric
Material : Stainless steel
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 15
Min temperature (°C) : -20
Max temperature (°C) : 160
Coupling features : Double sided shut-off
Quality of material : Stainless steel 303 (1.4305)
Min pressure (bar) : 0
Compatible models : Hasco Z811/9/14×1.5
Shape : Plug (male)
Sleeve material : Stainless steel
With dust cap : No
