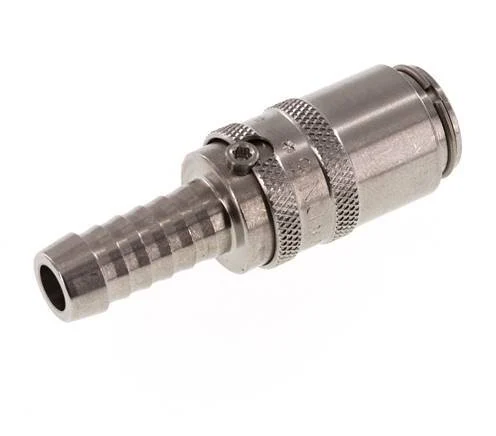

Stainless Steel DN 6 Mold Coupling Socket 9 mm Hose Pillar

Stainless steel DN 6 mold coupling socket. They are typically used for liquid lines to quickly connect and disconnect secure connections.

Easily mount a hose over the 9 mm hose pillar. Optionally, order a hose clamp for proper fixation of the hose. The operating pressure range is 0 to 15 bar (0 to 218 psi). The coupling is suitable for temperatures between -20 to 160 °C (-4 to 320 °F). The seal material is FKM. The housing material is stainless steel 303 (1.4305).

Suitable for: For liquid media with temperatures up to +160 °C, e.g. for cooling circuits on plastic processing machines (+200 °C on request).

Pros:

• Mold quick release couplings are developed for use with cooling or heating lines and resistance high temperature up to +160 °C

Specifications

Hose pillar connection (mm) : 9
Nominal diameter (mm) : 6
Plug diameter : 9 mm
Connection type : Hose pillar
Material : Stainless steel
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 15
Min temperature (°C) : -20
Max temperature (°C) : 160
Quality of material : Stainless steel 303 (1.4305)
Min pressure (bar) : 0
Compatible models : Hasco Z801/9
Shape : Coupling (female)
Sleeve material : Stainless steel
With dust cap : No
