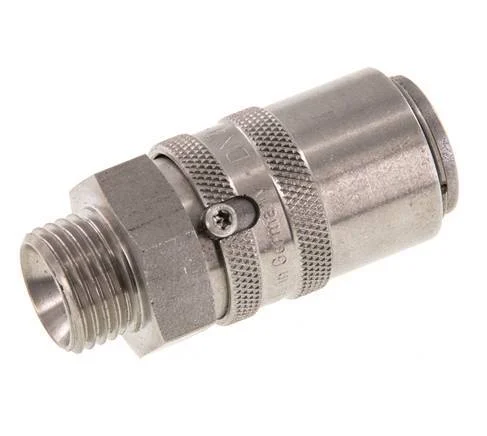

Stainless Steel DN 9 Mold Coupling Socket M16x1.5 Male Threads

Stainless steel DN 9 mold coupling socket with M16x1.5 male threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The M16x1.5 mm male threads allow for it to be threaded onto a matching female threaded part. The operating pressure range is 0 to 15 bar (0 to 218 psi). The coupling is suitable for temperatures between -20 to 160 °C (-4 to 320 °F). The seal material is FKM. The housing material is stainless steel 303 (1.4305).

Suitable for: For liquid media with temperatures up to +160 °C, e.g. for cooling circuits on plastic processing machines (+200 °C on request).

Pros:

• Mold quick release couplings are developed for use with cooling or heating lines and resistance high temperature up to +160 °C

Specifications

Connection size : M16 x 1.5
Nominal diameter (mm) : 9
Plug diameter : 13 mm
Connection type : Outer thread metric
Material : Stainless steel
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 15
Min temperature (°C) : -20
Max temperature (°C) : 160
Quality of material : Stainless steel 303 (1.4305)
Min pressure (bar) : 0
Compatible models : Hasco Z808/13/16×1.5
Shape : Coupling (female)
Sleeve material : Stainless steel
With dust cap : No
