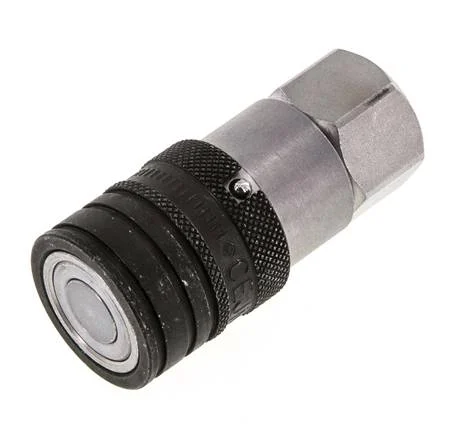

Steel DN 10 Flat Face Hydraulic Socket G 3/8 inch Female Threads ISO 16028 CEJN D 19.7mm

Steel DN 10 flat face hydraulic socket with G 3/8 inch female threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The G 3/8 inch female threads allow for it to be threaded onto a matching male threaded part. The maximum operating pressure is 400 bar (5800 psi). The coupling is suitable for temperatures between -30 to 100 °C (-22 to 212 °F). The seal material is NBR. The steel housing has a galvanic zink plated surface protection. The coupling complies with the ISO 16028 standard.

Pros:

• No dirt can get in as the coupling can simply be wiped clean due to the smooth flat face surface
• Axial forces can be absorbed well due to the coupling’s design, especially suited for use on hydraulic hoses
• Adheres to ISO 16028, allowing it to be interchangeable between brands

Specifications

Connection size : 3/8 inch
Nominal diameter (mm) : 10
Plug diameter : 19.7 mm
Socket diameter : 32 mm
Connection type : Inner thread cylindrical BSPP-G
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 400
Min temperature (°C) : -30
Max temperature (°C) : 100
Standard : ISO 16028
Shape : Coupling (female)
Surface protection : Galvanic zink plated
With dust cap : No
